Europamester 40-3 1/2 U

ID = 184801

{gbW: "800", gbH: "465", mW: "500", mH: "290.0", kb: "82 KB", notes: "For model Europamester 40-3 1/2 U, Phönix (Phønix); Danmark", title: "Phönix Phønix; Europamester 40-3 1/2 U from RM Member (sID 243) (1)", ite: "1"} {gbW: "800", gbH: "410", mW: "500", mH: "256.0", kb: "75 KB", notes: "For model Europamester 40-3 1/2 U, Phönix (Phønix); Danmark", title: "Phönix Phønix; Europamester 40-3 1/2 U from RM Member (sID 243) (1)", ite: "1"} {gbW: "800", gbH: "405", mW: "500", mH: "253.0", kb: "93 KB", notes: "For model Europamester 40-3 1/2 U, Phönix (Phønix); Danmark", title: "Phönix Phønix; Europamester 40-3 1/2 U from RM Member (sID 243) (1)", ite: "1"} {gbW: "800", gbH: "453", mW: "500", mH: "283.0", kb: "90 KB", notes: "For model Europamester 40-3 1/2 U, Phönix (Phønix); Danmark", title: "Phönix Phønix; Europamester 40-3 1/2 U from RM Member (sID 243) (1)", ite: "1"} {gbW: "800", gbH: "434", mW: "500", mH: "271.0", kb: "74 KB", notes: "For model Europamester 40-3 1/2 U, Phönix (Phønix); Danmark", title: "Phönix Phønix; Europamester 40-3 1/2 U from RM Member (sID 243) (1)", ite: "1"} {gbW: "800", gbH: "637", mW: "470.0", mH: "375", kb: "115 KB", notes: "For model Europamester 40-3 1/2 U, Phönix (Phønix); Danmark", title: "Phönix Phønix; Europamester 40-3 1/2 U from RM Member (sID 243) (1)", ite: "1"} {gbW: "640", gbH: "314", mW: "500", mH: "245.0", kb: "41 KB", notes: "For model Europamester 40-3 1/2 U, Phönix (Phønix); Danmark:[br]Europamester 40-3 1/2U", title: "Phönix Phønix; Europamester 40-3 1/2 U from Klemens Rhode (1)", ite: "1"} {gbW: "640", gbH: "344", mW: "500", mH: "268.0", kb: "52 KB", notes: "For model Europamester 40-3 1/2 U, Phönix (Phønix); Danmark:[br]40-3 1/2 U-Rueckw.", title: "Phönix Phønix; Europamester 40-3 1/2 U from Klemens Rhode (1)", ite: "1"} {gbW: "640", gbH: "444", mW: "500", mH: "346.0", kb: "83 KB", notes: "For model Europamester 40-3 1/2 U, Phönix (Phønix); Danmark:[br]40-3 1/2 u-Innen", title: "Phönix Phønix; Europamester 40-3 1/2 U from Klemens Rhode (1)", ite: "1"} {gbW: "933", gbH: "227", mW: "500", mH: "121.0", kb: "19 KB", notes: "For model Europamester 40-3 1/2 U, Phönix (Phønix); Danmark:[br]Typenschild", title: "Phönix Phønix; Europamester 40-3 1/2 U from Klemens Rhode (1)", ite: "1"}

Europamester 40-3 1/2 U; Phönix Phønix; (ID = 844501) Radio

Europamester 40-3 1/2 U; Phönix Phønix; (ID = 858497) Radio

Next pictures

Use red slider bar for more.

Europamester 40-3 1/2 U; Phönix Phønix; (ID = 844496) Radio

Phönix Phønix;: Europamester 40-3 1/2 U [Radio] ID = 844496 800x465

Select picture or schematic to display from thumbnails on the right and click for download.

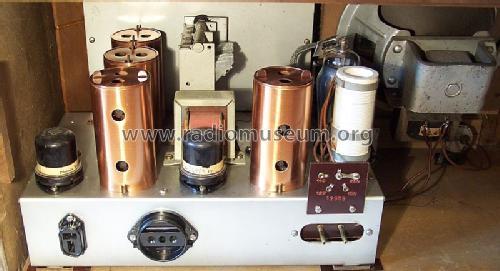

For model Europamester 40-3 1/2 U, Phönix (Phønix); Danmark

Country:

Denmark

Manufacturer / Brand:

Phönix (Phønix); Danmark

Year: 1939 ??

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

4: ECH11 EF11 CL4 CY1

Main principle	Superheterodyne (common)
Wave bands	Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage	AC/DC-set / 127/220 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org	Model: Europamester 40-3 1/2 U - Phönix Phønix; Danmark
Material	Wooden case
Shape	Tablemodel, low profile (big size).
Dimensions (WHD)	600 x 305 x 300 mm / 23.6 x 12 x 11.8 inch
Notes	Demodulation mit Halbleiterdiode.
Net weight (2.2 lb = 1 kg)	13.5 kg / 29 lb 11.8 oz (29.736 lb)
Source of data	- - Data from my own collection

Model page created by a member from D. See "Data change" for further contributors.

All listed radios etc. from Phönix (Phønix); Danmark
Here you find 13 models, 13 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
