• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1950–1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 100466

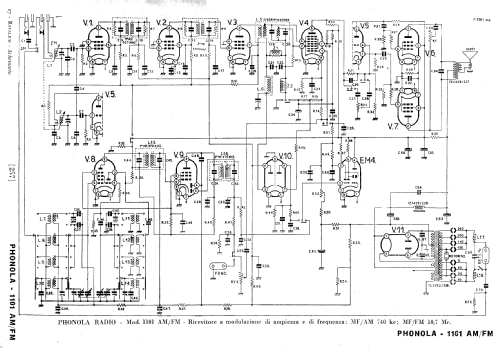

Click on the schematic thumbnail to request the schematic as a free document.

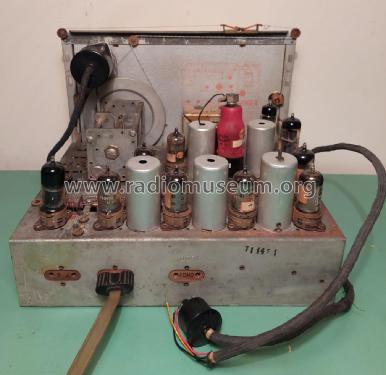

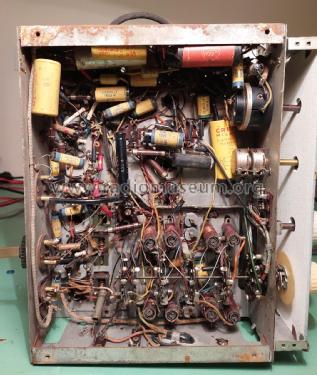

• Number of Tubes
• 12

• Valves / Tubes
• EF42 ECC40 EF42 EF42 EM4 EQ80 EB41 ECH42 EBF32 EL41 EL41 AZ2

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 100-270 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1101 AM/FM - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 730 x 370 x 300 mm / 28.7 x 14.6 x 11.8 inch

• Notes

• Ricevitore AM/FM.
  Early Italian AM/FM radio receiver.
  gamme d'onda: 2 OM, 6 OC, FM

  Controllo di tono. La rete elettrica è utilizzata come antenna per la parte AM collegata alla bobina di ingresso tramite un condensatore di isolamento. Ingresso per giradischi.

• Price in first year of sale
• 100,000.00 ITL

• Source of data
• Guida Pratica Antique Radio IV (2001)

• Mentioned in
• Catalogo Antique Radio, Vol. II

• Literature/Schematics (1)
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 257)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 715 models, 454 with images and 542 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Phonola SA, FIMI; Saronno (VA)
