5521N

5521N; Phonola SA, FIMI; (ID = 259790) Car Radio

5521N; Phonola SA, FIMI; (ID = 259792) Car Radio

5521N; Phonola SA, FIMI; (ID = 259791) Car Radio

5521N; Phonola SA, FIMI; (ID = 2206444) Car Radio

5521N; Phonola SA, FIMI; (ID = 2206445) Car Radio
5521N; Phonola SA, FIMI; (ID = 2322755) Car Radio
Use red slider bar for more.
5521N; Phonola SA, FIMI; (ID = 2322755) Car Radio
Phonola SA, FIMI;: 5521N [Car Radio] ID = 2322755 963x580
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5521N, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1952 ?? Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: EF42 ECH42 EF41 EBC41 EL42
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast, more than 2 SW bands plus FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.8 W (unknown quality)
from Radiomuseum.org Model: 5521N - Phonola SA, FIMI; Saronno VA
Notes

Sintonia a permeabilità variabile. Gamme d'onda: medie e 5 gamme d'onde corte espanse: 19 - 25 - 31 - 41 e 49 metri. N = Normale, per installazione su qualsiasi autovettura.
Wave bands: BC, 5× SW.

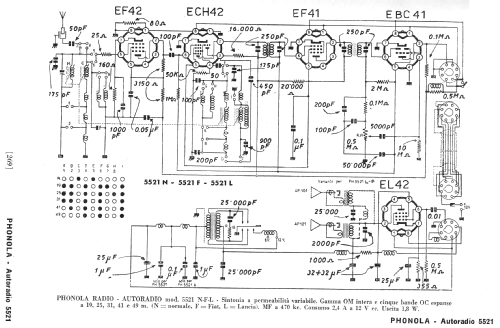

Literature/Schematics (1) Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 269-271)
Literature/Schematics (2) D.E. Ravalico, Il Radiolibro, 13° edizione, 1952, Hoepli
Literature/Schematics (3) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli (12a edizione, 1953)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
