• Year
  • 1951/1952
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 90612

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 140; 160; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
  • Power out
  • 3.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

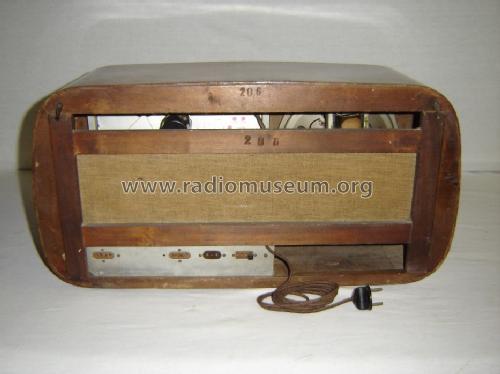

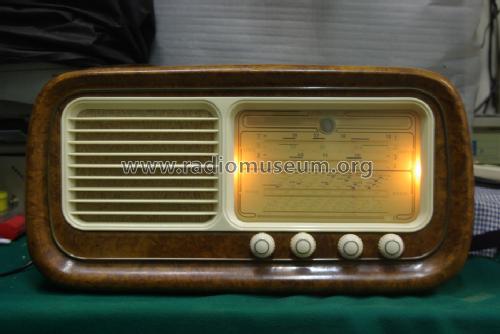

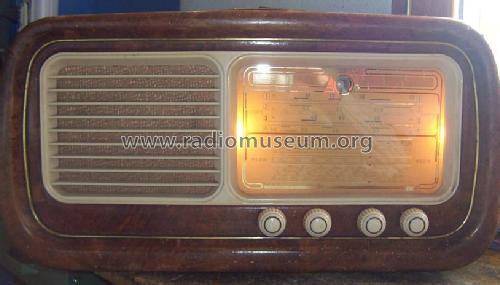

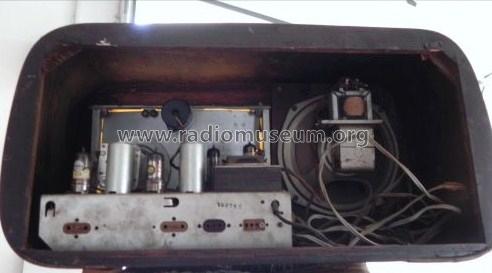

  • Model: 5533 - Phonola SA, FIMI; Saronno VA
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 570 x 300 x 240 mm / 22.4 x 11.8 x 9.4 inch
  • Notes
  • Gamme d'onda: OM e 4 OC a bande allargate.
    MW and 4× SW. Mobile in legno con cornice frontale in bakelite Avorio
  • Source of data
  • -- Schematic
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
