5575

5575; Phonola SA, FIMI; (ID = 416029) Radio
5575; Phonola SA, FIMI; (ID = 273073) Radio 5575; Phonola SA, FIMI; (ID = 273074) Radio
5575; Phonola SA, FIMI; (ID = 273077) Radio 5575; Phonola SA, FIMI; (ID = 273076) Radio
5575; Phonola SA, FIMI; (ID = 273078) Radio 5575; Phonola SA, FIMI; (ID = 273079) Radio
5575; Phonola SA, FIMI; (ID = 1196300) Radio 5575; Phonola SA, FIMI; (ID = 273075) Radio
Use red slider bar for more.
5575; Phonola SA, FIMI; (ID = 273073) Radio
Phonola SA, FIMI;: 5575 [Radio] ID = 273073 661x347
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5575, Phonola SA, FIMI; Saronno (VA):
Foto per cortesia di Gabriele (venditore ebay: gabri.g)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1953 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH42 UF41 UBC41 UL41 EM80 UY41
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 5575 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 610 x 320 x 240 mm / 24 x 12.6 x 9.4 inch
Notes Vorsicht, der Heizkreis führt Netzspannung.

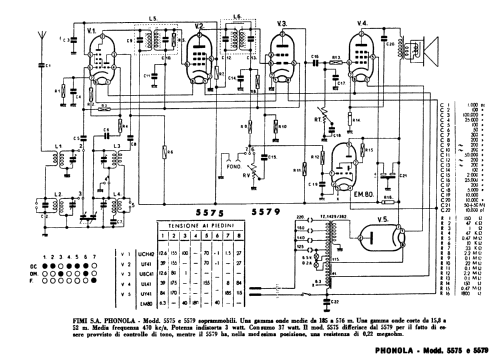

Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.
