567; Phonola SA, FIMI; (ID = 220303) Radio

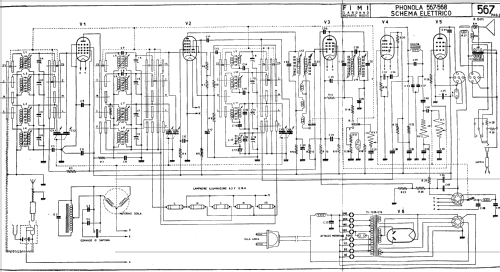

Phonola SA, FIMI;: 567 [Radio] ID = 220303 684x583
Select picture or schematic to display from thumbnails on the right and click for download.
For model 567, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1940–1943 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EF8 ECH4 EBF2 or 6BN8G EFM1 EL3 WE54 or AZ1
Main principle Superhet with RF-stage; ZF/IF 470 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.

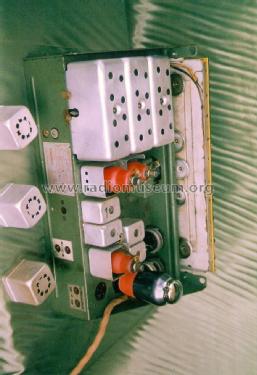

Details
Power type and voltage Alternating Current supply (AC) / 100-270 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: 567 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 460 x 360 x 300 mm / 18.1 x 14.2 x 11.8 inch
Notes

Onde Lunghe, Medie e 2 gamme di onde Corte. Serie motorizzata. Con la manopola di sintonia si aziona un motorino con cui si rileva una emittente. Con un'altra manopola si sintonizza perfettamente l'emittente.
Controllo di tono. Ingresso Fono.

Motorische Grobabstimmung durch Zug und links/rechts Drehung des Abstimmknopfes, Feinabstimmung manuell.

Net weight (2.2 lb = 1 kg) 16.7 kg / 36 lb 12.5 oz (36.784 lb)
Source of data Guida Pratica Antique Radio II (2000)
Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli (Ottava edizione - 1945)

Model page created by Bernhard Beier. See "Data change" for further contributors.
