Phonoletta 687C

Phonoletta 687C; Phonola SA, FIMI; (ID = 383759) Radio

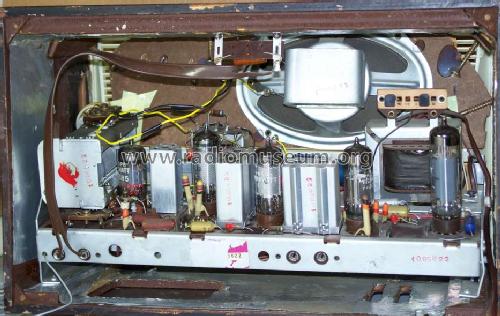

Phonoletta 687C; Phonola SA, FIMI; (ID = 1309219) Radio Phonoletta 687C; Phonola SA, FIMI; (ID = 1281454) Radio
Phonoletta 687C; Phonola SA, FIMI; (ID = 1281453) Radio Phonoletta 687C; Phonola SA, FIMI; (ID = 377101) Radio
Phonoletta 687C; Phonola SA, FIMI; (ID = 1309221) Radio Phonoletta 687C; Phonola SA, FIMI; (ID = 1281417) Radio
Phonoletta 687C; Phonola SA, FIMI; (ID = 1309223) Radio Phonoletta 687C; Phonola SA, FIMI; (ID = 1645427) Radio
Phonoletta 687C; Phonola SA, FIMI; (ID = 1645429) Radio Phonoletta 687C; Phonola SA, FIMI; (ID = 1738961) Radio
Use red slider bar for more.
Phonoletta 687C; Phonola SA, FIMI; (ID = 1309219) Radio
Phonola SA, FIMI;: Phonoletta 687C [Radio] ID = 1309219 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phonoletta 687C, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM81 EL84
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Phonoletta 687C - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 340 x 210 x 180 mm / 13.4 x 8.3 x 7.1 inch
Notes Riceve anche gamma audio TV.
Collectors' prices
Mentioned in -- Collector info (Sammler)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
