For model Derby 693-C, Phonola SA, FIMI; Saronno (VA):

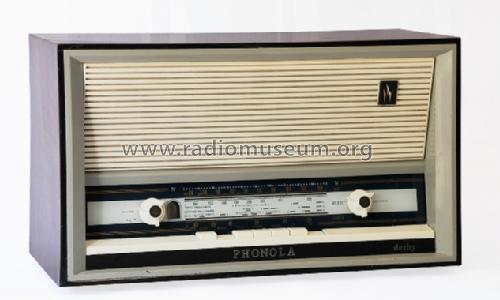

Photo by courtesy of a guest.

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1961 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM81 EL84
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Derby 693-C - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 430 x 260 x 190 mm / 16.9 x 10.2 x 7.5 inch
Notes Gamme d'onda: medie, corte, modulazione di frequenza, TV. Indicatore di sintonia. Pulsanti per Acuti e Bassi.
Wave bands: BC, SW, MF, TV.
Caution: Radio has a "hot chassis"! Use isolation transformer for inspection and repair.
Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
