955 Ch=950

955 Ch=950; Phonola SA, FIMI; (ID = 96591) Radio 955 Ch=950; Phonola SA, FIMI; (ID = 143867) Radio
Use red slider bar for more.

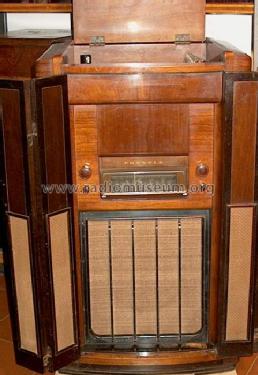

955 Ch=950; Phonola SA, FIMI; (ID = 96591) Radio
Phonola SA, FIMI;: 955 Ch=950 [Radio] ID = 96591 527x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 955 Ch=950, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AK2 AF3 ABC1 42 42 80
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz
Wave bands Broadcast and Short Wave (SW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 955 Ch=950 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 400 x 960 x 570 mm / 15.7 x 37.8 x 22.4 inch
Source of data Guida Pratica Antique Radio II (2000)

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
