GK-91

GK-91; QUELLE GmbH (ID = 821080) Television

GK-91; QUELLE GmbH (ID = 821081) Television
Use red slider bar for more.
GK-91; QUELLE GmbH (ID = 821080) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  QUELLE GmbH (Universum); Fürth und Nürnberg
Year: 1960 Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: AW53-88 PCC88 PCF80 PC86 PC86 EF80 EF80 PCL84 ECH81 PCL82 EAA91 PCF80 EF80 PCL82 PL36 PY88 DY86
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: GK-91 - QUELLE GmbH Universum; Fürth
Shape Tablemodel with Push Buttons.
Notes Quelle Universum GK 91; 53 cm s/w mit CCIR VHF und UHF Tuner.

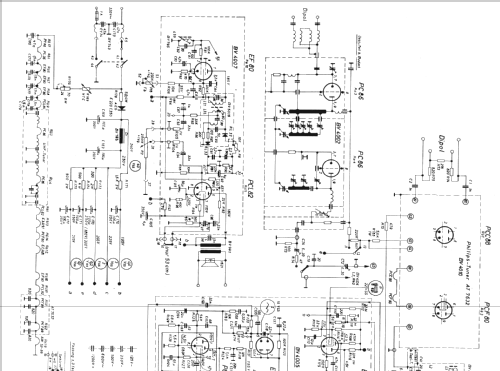

Literature/Schematics (1) Original Quelle Service Unterlagen

Model page created by Josef Pilz. See "Data change" for further contributors.
