• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 156160

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EBF89 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

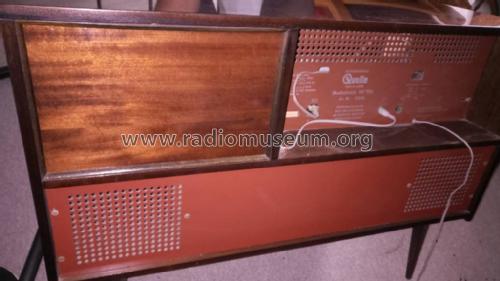

• Model: Musikschrank MT956 Art. Nr. 03636 / 03637 - QUELLE GmbH Universum; Fürth

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• 2 Ausführungen:
  Art. Nr. 03636 = Gehäuse dunkel,
  Art. Nr. 03637 = Gehäuse hell.

  Philips-Stereo-Plattenwechsler AG1025 bzw. AG1035.
  Anschlüsse: Tonband, Zweitlautsprecher.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Thomas Günzel † 1.8.22. See "Data change" for further contributors.
