• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 155593

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

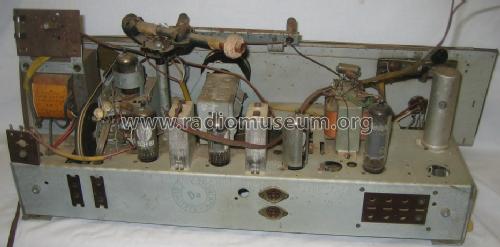

• Model: Simonetta Vollsuper W3126 Art.-Nr.07538 - QUELLE GmbH Universum; Fürth

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 580 x 330 x 245 mm / 22.8 x 13 x 9.6 inch

• Notes

• Lautsprecher: 1x perm. dyn.; 2x stat. Anschlüsse: Phono/Tonband, Zweitlautsprecher

  Hersteller: Kaiser KG für Quelle Versand GmbH.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Thomas Günzel † 1.8.22. See "Data change" for further contributors.
