RA-17 Mk II

RA-17; Racal Engineering (ID = 264321) Commercial Re RA-17; Racal Engineering (ID = 264322) Commercial Re

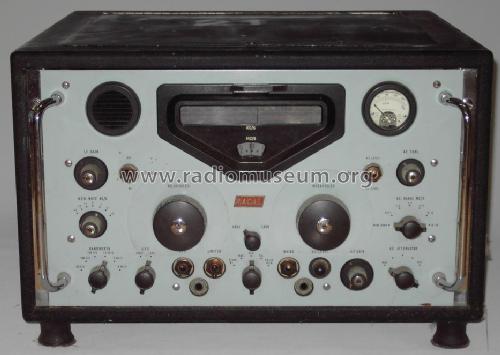

RA-17; Racal Engineering (ID = 264323) Commercial Re RA-17; Racal Engineering (ID = 1900081) Commercial Re

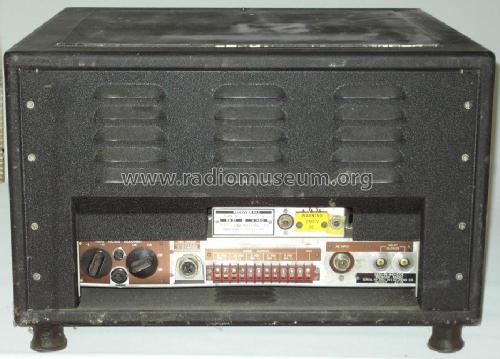

RA-17; Racal Engineering (ID = 1900082) Commercial Re RA-17; Racal Engineering (ID = 1900084) Commercial Re
Use red slider bar for more.
RA-17; Racal Engineering (ID = 264321) Commercial Re
Racal Engineering: RA-17 [Commercial Re] ID = 264321 650x448
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA-17 Mk II, Racal Engineering (Racal Instruments) Ltd., Bracknell:
eBay: ve3zzy (CAN). #9714486569 (Bild bearbeitet)

Country:  Great Britain (UK)
Manufacturer / Brand:  Racal Engineering (Racal Instruments) Ltd., Bracknell
Year: 1957 ? Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 23: EF91 E180F 6F33 EK90 EF93 EB91 GZ33
schematic requested
Main principle Wadley-Loop principle (including dual superhet); ZF/IF 40000/2500 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 100-125 / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
Power out 0.05 W (unknown quality)
from Radiomuseum.org Model: RA-17 [Mk II] - Racal Engineering Racal
Material Metal case
Shape Rack
Dimensions (WHD) 482 x 267 x 510 mm / 19 x 10.5 x 20.1 inch
Notes General coverage receiver 980 - 30000 kHz, AM, SSB (BFO).
IF bandwidths 0,1 / 0,3 / 0,75 / 1,2 / 3 / 8 kHz (-6dB), linear analog readout 1 kHz. 100 kHz calibrator.
Most tubes used more then once, rectifier tube changed from GZ33 to GZ34 from S/N 1460. Improved 100 kHz filter unit over original RA17 Mk I.
Net weight (2.2 lb = 1 kg) 30.5 kg / 67 lb 2.9 oz (67.181 lb)
Source of data -- Original-techn. papers.
Mentioned in Racal Handbook, Rinus Jansen

Model page created by Martin Bösch. See "Data change" for further contributors.
