Radiobell Junior 46 - 46U

Radiobell Junior 46 - 46U; Bell Telephone Mfg. (ID = 1290555) Radio

Radiobell Junior 46 - 46U; Bell Telephone Mfg. (ID = 2103950) Radio

Radiobell Junior 46 - 46U; Bell Telephone Mfg. (ID = 2103951) Radio

Radiobell Junior 46 - 46U; Bell Telephone Mfg. (ID = 2103952) Radio
Radiobell Junior 46 - 46U; Bell Telephone Mfg. (ID = 2294687) Radio Radiobell Junior 46 - 46U; Bell Telephone Mfg. (ID = 2047152) Radio
Radiobell Junior 46 - 46U; Bell Telephone Mfg. (ID = 2047159) Radio Radiobell Junior 46 - 46U; Bell Telephone Mfg. (ID = 2047158) Radio
Radiobell Junior 46 - 46U; Bell Telephone Mfg. (ID = 2047161) Radio Radiobell Junior 46 - 46U; Bell Telephone Mfg. (ID = 2047156) Radio
Radiobell Junior 46 - 46U; Bell Telephone Mfg. (ID = 2047154) Radio Radiobell Junior 46 - 46U; Bell Telephone Mfg. (ID = 2047157) Radio
Radiobell Junior 46 - 46U; Bell Telephone Mfg. (ID = 2047155) Radio Radiobell Junior 46 - 46U; Bell Telephone Mfg. (ID = 107056) Radio
Use red slider bar for more.

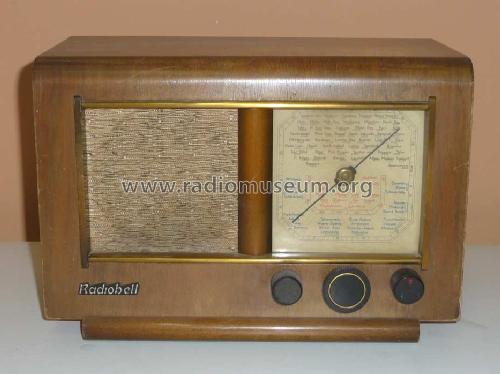

Radiobell Junior 46 - 46U; Bell Telephone Mfg. (ID = 2294687) Radio
Bell Telephone Mfg.: Radiobell Junior 46 - 46U [Radio] ID = 2294687 1400x1089
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiobell Junior 46 - 46U, Bell Telephone Mfg. Co. (Radiobell); Antwerp

Country:  Belgium
Manufacturer / Brand:  Bell Telephone Mfg. Co. (Radiobell); Antwerp
Brand

Radiobell
Year: 1945/1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH21 UCH21 UBL21 UY1N
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Radiobell Junior 46 - 46U - Bell Telephone Mfg. Co.
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 315 x 210 x 160 mm / 12.4 x 8.3 x 6.3 inch
External source of data eBay Autktion 6523269507

Model page created by Ernst Erb. See "Data change" for further contributors.
