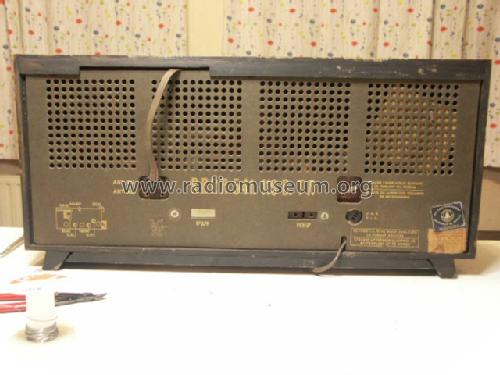

Bell RBRA 541. 119B. TA; Bell Telephone Mfg. (ID = 711248) Radio
Use red slider bar for more.
Bell RBRA 541. 119B. TA; Bell Telephone Mfg. (ID = 711246) Radio
Bell Telephone Mfg.: Bell RBRA 541. 119B. TA [Radio] ID = 711246 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bell RBRA 541. 119B. TA, Bell Telephone Mfg. Co. (Radiobell); Antwerp

Country:  Belgium
Manufacturer / Brand:  Bell Telephone Mfg. Co. (Radiobell); Antwerp
Brand

Radiobell
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 145; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Bell RBRA 541. 119B. TA - Bell Telephone Mfg. Co.
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 550 x 265 x 200 mm / 21.7 x 10.4 x 7.9 inch
Notes

Wide oval speaker 25 x 8 cm (GIRA A522655). 2 internal ferrite antenna rods, fixed position, not directible. All capacitors in nF range are of paper type.

Model page created by Dirk Bladt. See "Data change" for further contributors.
