RA428A 1934

RA428A; Radiola marque (ID = 1038756) Radio RA428A; Radiola marque (ID = 1038757) Radio
RA428A; Radiola marque (ID = 1038955) Radio RA428A; Radiola marque (ID = 1038956) Radio
RA428A; Radiola marque (ID = 1038957) Radio RA428A; Radiola marque (ID = 1038958) Radio
RA428A; Radiola marque (ID = 1038959) Radio RA428A; Radiola marque (ID = 1038960) Radio
RA428A; Radiola marque (ID = 2003975) Radio
Use red slider bar for more.
RA428A; Radiola marque (ID = 1038756) Radio
Radiola marque: RA428A [Radio] ID = 1038756 933x1007
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA428A 1934, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: TE55 TE52 TE99 TC43 TV80 or V80
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: RA428A [1934] - Radiola marque
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 337 x 427 x 202 mm / 13.3 x 16.8 x 8 inch
Notes

2 gammes d'ondes : PO de 200 à 600 m, GO de 900 à 2000 m. Montage Super-Inductance. HP type 2161. Prises pick-up et HP supplémentaire.

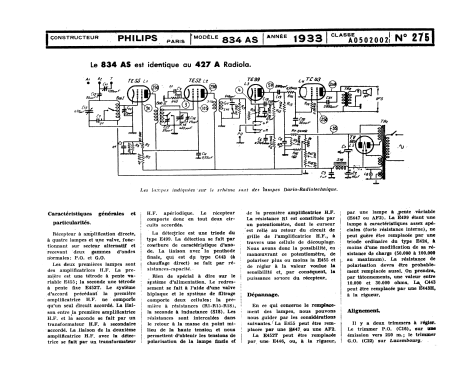

Équivalent au Philips 834S.

Mentioned in - - Manufacturers Literature
Literature/Schematics (1) Radio Constructeur et Dépanneur (Correspondance Philips - Radiola, Juillet-Août 1956)

Model page created by John Koster. See "Data change" for further contributors.



All listed radios etc. from Radiola (marque)
Here you find 824 models, 519 with images and 267 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
