Multi Inductance RA567A

Multi Inductance RA567A; Radiola marque (ID = 1512315) Radio Multi Inductance RA567A; Radiola marque (ID = 238709) Radio

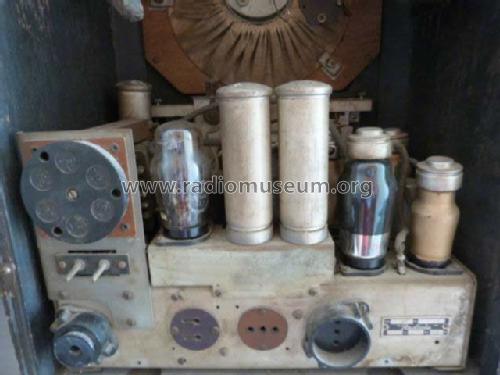

Multi Inductance RA567A; Radiola marque (ID = 1512316) Radio Multi Inductance RA567A; Radiola marque (ID = 1512317) Radio
Multi Inductance RA567A; Radiola marque (ID = 1512318) Radio Multi Inductance RA567A; Radiola marque (ID = 1512319) Radio
Multi Inductance RA567A; Radiola marque (ID = 1512321) Radio
Use red slider bar for more.
Multi Inductance RA567A; Radiola marque (ID = 1512315) Radio
Radiola marque: Multi Inductance RA567A [Radio] ID = 1512315 515x641
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multi Inductance RA567A, Radiola (marque):
ebay.de #171104002985 seller: uhrwerk25

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AF3 AK2 AF3 ABC1 AL2 AZ1
schematic requested
Main principle Superhet with RF-stage; ZF/IF 115 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Visual Tuning Indicator pre Eye
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Multi Inductance RA567A - Radiola marque
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 380 x 490 x 260 mm / 15 x 19.3 x 10.2 inch
Notes

3 gammes d'ondes. Cadran en celluloïd. Indicateur d'accord à ombre.

Équivalent au Philips 535A.

Mentioned in Le grand livre de la TSF (Doctsf Ref 30223)

Model page created by John Koster. See "Data change" for further contributors.



All listed radios etc. from Radiola (marque)
Here you find 824 models, 519 with images and 268 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
