Radiolinette RA155A

Radiolinette RA155A; Radiola marque (ID = 99326) Radio

Radiolinette RA155A; Radiola marque (ID = 99327) Radio
Radiolinette RA155A; Radiola marque (ID = 1840995) Radio Radiolinette RA155A; Radiola marque (ID = 1840940) Radio
Radiolinette RA155A; Radiola marque (ID = 1840938) Radio Radiolinette RA155A; Radiola marque (ID = 211362) Radio
Radiolinette RA155A; Radiola marque (ID = 211363) Radio Radiolinette RA155A; Radiola marque (ID = 1164707) Radio
Radiolinette RA155A; Radiola marque (ID = 1840937) Radio
Use red slider bar for more.

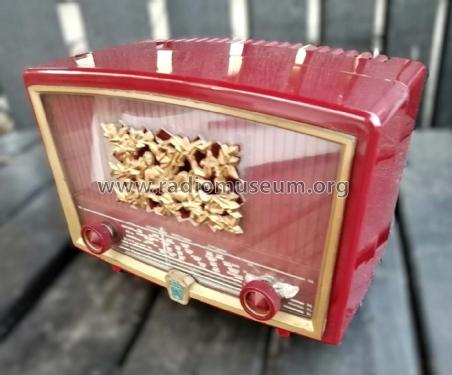

Radiolinette RA155A; Radiola marque (ID = 1840995) Radio
Radiola marque: Radiolinette RA155A [Radio] ID = 1840995 930x643
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiolinette RA155A, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY42
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 117-123; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Radiolinette RA155A - Radiola marque
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 240 x 170 x 130 mm / 9.4 x 6.7 x 5.1 inch
Notes

4 gammes d'ondes dont 1 bande étalée (BE). Cadre ferroxcube de 20 cm et antenne plaque pour OC incorporés. HP elliptique de 10 x 14cm.

Coffret polystyrène en deux coquilles, face avant à grille plastique. Mallette-sac livrable sur demande.

Équivalent au Philips BF151A.

Net weight (2.2 lb = 1 kg) 2.6 kg / 5 lb 11.6 oz (5.727 lb)
Mentioned in -- Original prospect or advert
Literature/Schematics (1) Schémathèque Sorokine (SRK) (No. 917)

Model page created by Patrice Zeissloff. See "Data change" for further contributors.
