RA47A

RA47A; Radiola marque (ID = 1476247) Radio
RA47A; Radiola marque (ID = 241627) Radio RA47A; Radiola marque (ID = 241628) Radio

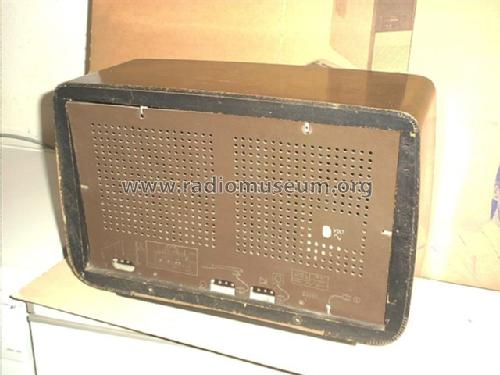

RA47A; Radiola marque (ID = 241629) Radio RA47A; Radiola marque (ID = 241630) Radio

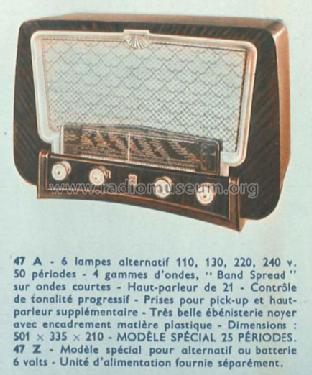

RA47A; Radiola marque (ID = 699788) Radio RA47A; Radiola marque (ID = 876908) Radio
Use red slider bar for more.

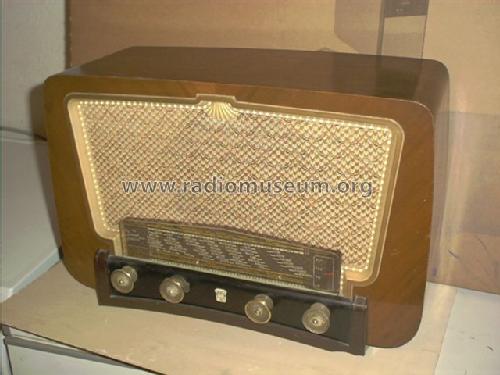

RA47A; Radiola marque (ID = 241627) Radio
Radiola marque: RA47A [Radio] ID = 241627 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA47A, Radiola (marque):
Eigene Ebay-Auktion

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EBC41 EL41 EM34 AZ41
Main principle Superheterodyne (common); ZF/IF 466 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: RA47A - Radiola marque
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 501 x 335 x 210 mm / 19.7 x 13.2 x 8.3 inch
Notes

4 gammes d'ondes: OC1 18,75 à 5,88 MHz, OC2 (bande étalée) 6,38 à 5,96 MHz, PO 1620 à 521,7 kHz, GO 272 à 154 kHz.  Controle de tonalité progressif. Prises PU et HP supplémentaire.

Ébénisterie en noyer, encadrement matière plastique. Existe aussi en version 25 périodes.

Équivalent au Philips BF412A.



Mentioned in - - Manufacturers Literature
Literature/Schematics (1) Le grand livre de la TSF (Doctsf Ref 2736)
Literature/Schematics (4) Schémathèque Toute la Radio (STR) (No. 794)

Model page created by John Koster. See "Data change" for further contributors.
