Polymeter RV21a

Polymeter RV21a; Radiometer; (ID = 904779) Equipment Polymeter RV21a; Radiometer; (ID = 904780) Equipment
Polymeter RV21a; Radiometer; (ID = 904781) Equipment Polymeter RV21a; Radiometer; (ID = 904782) Equipment
Polymeter RV21a; Radiometer; (ID = 904783) Equipment Polymeter RV21a; Radiometer; (ID = 905355) Equipment

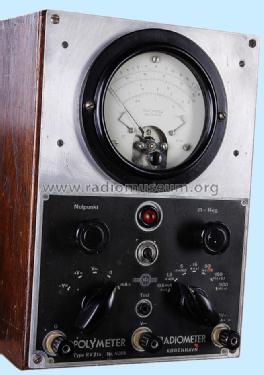

Polymeter RV21a; Radiometer; (ID = 1298579) Equipment
Use red slider bar for more.

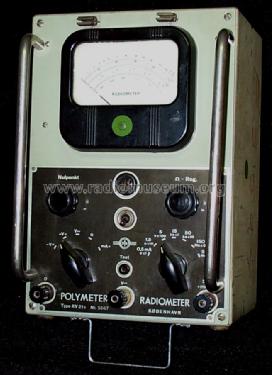

Polymeter RV21a; Radiometer; (ID = 904779) Equipment
Radiometer;: Polymeter RV21a [Equipment] ID = 904779 658x904
Select picture or schematic to display from thumbnails on the right and click for download.
For model Polymeter RV21a, Radiometer; Copenhagen

Country:  Denmark
Manufacturer / Brand:  Radiometer; Copenhagen
Year: 1944 ? Category: Service- or Lab Equipment
Valves / Tubes 4: EF2 EF6 EF6 AZ1
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 200; 220; 240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Polymeter RV21a - Radiometer; Copenhagen
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 196 x 287 x 194 mm / 7.7 x 11.3 x 7.6 inch
Notes Polymeter RV21a is a Vacuum Tube Multimeter.
Measuring Ranges:
DC current: 0.5, 1.5, 5, 15, 50, 150, 500 mA
DC/AC voltage: 1.5, 5, 15, 50, 150, 500 V
Resistance: Ω: x1, x10, x100. kΩ: x1, x10. MΩ: x0.1, x1
Net weight (2.2 lb = 1 kg) 5.9 kg / 12 lb 15.9 oz (12.996 lb)
Literature/Schematics (1) Technical Museum in Oslo

Model page created by Christer Falkenström. See "Data change" for further contributors.
