4054 UKW/W

4054 UKW/W; Radione RADIO (ID = 185726) Radio
4054 UKW/W; Radione RADIO (ID = 2371039) Radio 4054 UKW/W; Radione RADIO (ID = 2371037) Radio
4054 UKW/W; Radione RADIO (ID = 2371038) Radio 4054 UKW/W; Radione RADIO (ID = 2371036) Radio
4054 UKW/W; Radione RADIO (ID = 158280) Radio 4054 UKW/W; Radione RADIO (ID = 579684) Radio
4054 UKW/W; Radione RADIO (ID = 579685) Radio 4054 UKW/W; Radione RADIO (ID = 579686) Radio
4054 UKW/W; Radione RADIO (ID = 579687) Radio 4054 UKW/W; Radione RADIO (ID = 579688) Radio
Use red slider bar for more.
4054 UKW/W; Radione RADIO (ID = 2371039) Radio

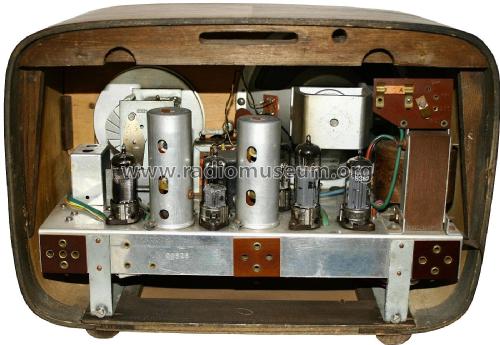

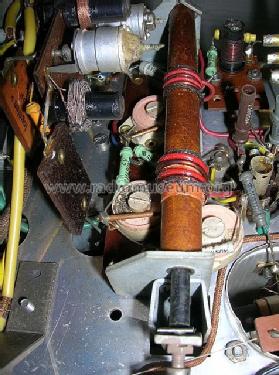

Radione RADIO: 4054 UKW/W [Radio] ID = 2371039 1400x1236
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4054 UKW/W, Radione (RADIO Nikolaus Eltz); Wien:
aus eigener Sammlung

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Year: 1954 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EF85 EABC80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 461/10700 kHz
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 4054 UKW/W - Radione RADIO Nikolaus Eltz;
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 370 x 260 x 200 mm / 14.6 x 10.2 x 7.9 inch
Notes

Das Triodensystem der ECH81 wird ausschliesslich für UKW als selbstschwingende additive Mischstufe verwendet. Keine UKW-Vorstufe. Variometer-Abstimmung.

MW/LW: Selbstschwingende Mischstufe in Pentagrid-Schaltung mit Kathodenrückkopplung des Oszillators.

Siehe auch Radione 4054 UKW/W Economic, Unterschiede sind derzeit nicht bekannt.
