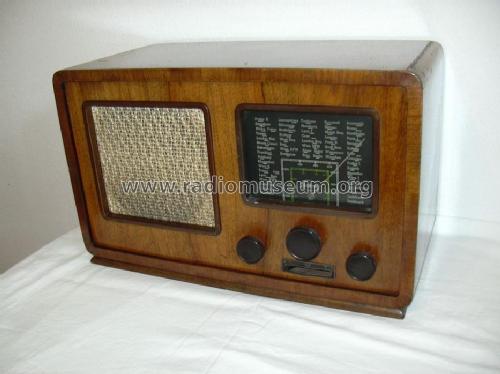

For model 5049U, Radione (RADIO Nikolaus Eltz); Wien:
Radione 5049U

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UAF42 UAF42 UL41 UY1N or UY41 U1230-4
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 5049U - Radione RADIO Nikolaus Eltz;
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 415 x 260 x 210 mm / 16.3 x 10.2 x 8.3 inch
Notes .
Price in first year of sale 1'200.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Radio-Mentor (4908)
