5050W; Radione RADIO (ID = 945464) Radio

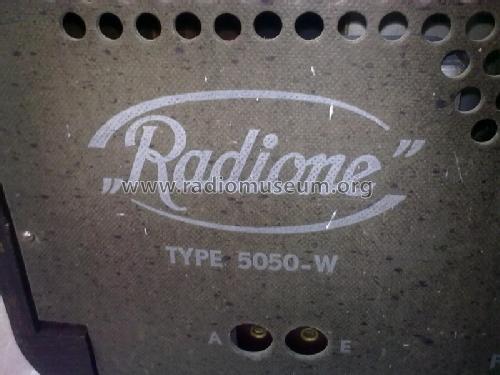

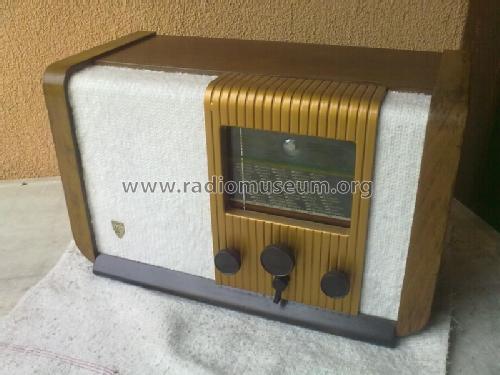

Radione RADIO: 5050W [Radio] ID = 945464 933x632
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5050W, Radione (RADIO Nikolaus Eltz); Wien

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EAF42 EL41 EM34 AZ1
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 5050W - Radione RADIO Nikolaus Eltz;
Material Wooden case
Dimensions (WHD) 525 x 340 x 240 mm / 20.7 x 13.4 x 9.4 inch
Notes Export Schweiz (Sch=Thali)
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Price in first year of sale 1'350.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
