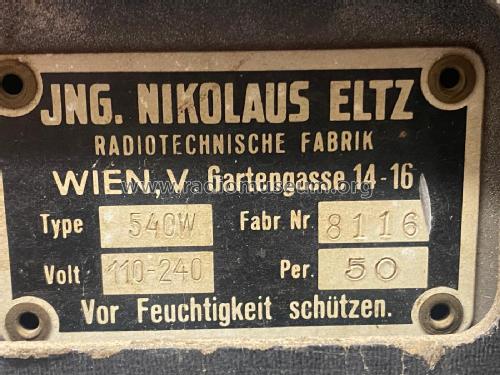

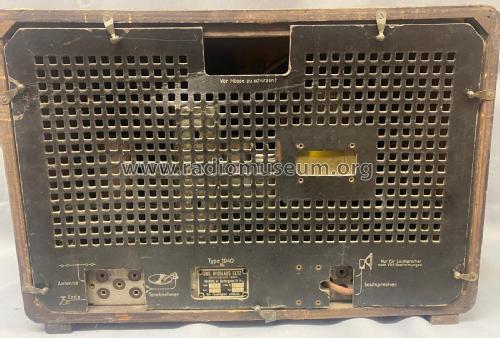

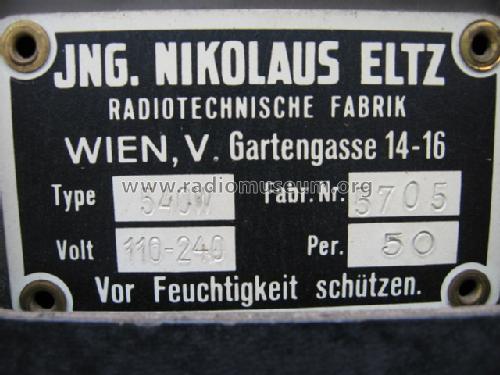

{gbW: "640", gbH: "480", mW: "500", mH: "375", kb: "108 KB", notes: "For model 540W Type 1940, Radione (RADIO Nikolaus Eltz); Wien:[br]Radione 540W", title: "Radione RADIO 540W from Alois Steiner (1)", ite: "1"} {gbW: "640", gbH: "480", mW: "500", mH: "375", kb: "106 KB", notes: "For model 540W Type 1940, Radione (RADIO Nikolaus Eltz); Wien:[br]Radione 540W (Innenansicht)", title: "Radione RADIO 540W from Alois Steiner (1)", ite: "1"} {gbW: "640", gbH: "480", mW: "500", mH: "375", kb: "116 KB", notes: "For model 540W Type 1940, Radione (RADIO Nikolaus Eltz); Wien:[br]Radione 540W (Rückansicht)", title: "Radione RADIO 540W from Alois Steiner (1)", ite: "1"} {gbW: "640", gbH: "480", mW: "500", mH: "375", kb: "109 KB", notes: "For model 540W Type 1940, Radione (RADIO Nikolaus Eltz); Wien:[br]Radione 540W", title: "Radione RADIO 540W from Alois Steiner (1)", ite: "1"} {gbW: "640", gbH: "480", mW: "500", mH: "375", kb: "119 KB", notes: "For model 540W Type 1940, Radione (RADIO Nikolaus Eltz); Wien:[br]Radione 540W (Typenschild)", title: "Radione RADIO 540W from Alois Steiner (1)", ite: "1"} {gbW: "800", gbH: "570", mW: "500", mH: "356.0", kb: "76 KB", notes: "For model 540W Type 1940, Radione (RADIO Nikolaus Eltz); Wien:[br]Habe statt Nußbaum Mahagoni-Beize erwischt , daher die rötliche Farbe, sieht aber trotzdem gut aus, also hab ichs gelassen.", title: "Radione RADIO 540W from Karl Reiter (1)", ite: "1"} {gbW: "434", gbH: "700", mW: "232.0", mH: "375", kb: "77 KB", notes: "For model 540W Type 1940, Radione (RADIO Nikolaus Eltz); Wien", title: "Radione RADIO 540W from Karl Reiter (1)", ite: "1"} {gbW: "800", gbH: "543", mW: "500", mH: "339.0", kb: "89 KB", notes: "For model 540W Type 1940, Radione (RADIO Nikolaus Eltz); Wien", title: "Radione RADIO 540W from Karl Reiter (1)", ite: "1"} {gbW: "600", gbH: "450", mW: "500", mH: "375", kb: "37 KB", notes: "For model 540W Type 1940, Radione (RADIO Nikolaus Eltz); Wien", title: "Radione RADIO 540W from Karl Reiter (1)", ite: "1"} {gbW: "762", gbH: "700", mW: "408.0", mH: "375", kb: "98 KB", notes: "For model 540W Type 1940, Radione (RADIO Nikolaus Eltz); Wien", title: "Radione RADIO 540W from Karl Reiter (1)", ite: "1"}

Next pictures

Use red slider bar for more.

Radione RADIO: 540W [Radio] ID = 266774 640x480

Select picture or schematic to display from thumbnails on the right and click for download.

For model 540W Type 1940, Radione (RADIO Nikolaus Eltz); Wien:
Radione 540W

Country:

Austria

Manufacturer / Brand:

Radione (RADIO Nikolaus Eltz); Wien

Year: 1939–1942

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

5: ECH11 EBF11 EL11 AZ11 EFM11

Main principle	Superheterodyne (common); ZF/IF 469 kHz; 2 AF stage(s)
Tuned circuits	7 AM circuit(s)
Wave bands	Broadcast, Long Wave and Short Wave.
Details
Power type and voltage	Alternating Current supply (AC) / 110-240 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org	Model: 540W [Type 1940] - Radione RADIO Nikolaus Eltz;
Material	Wooden case
Shape	Tablemodel, low profile (big size).
Dimensions (WHD)	470 x 330 x 270 mm / 18.5 x 13 x 10.6 inch
Notes	evtl. nur Exp. variable Bandbreite
Net weight (2.2 lb = 1 kg)	13 kg / 28 lb 10.1 oz (28.634 lb)
External source of data	E. Erb 3-907007-36-0
Source of data	Handbuch WDRG 1939 / Radiokatalog Band 2, Ernst Erb
Circuit diagram reference	Die «Thali Schemasammlung» führt das Modell.
Literature/Schematics (1)	-- Original-techn. papers.
