Duplex-Junior W EM81

Duplex-Junior W ; Radione RADIO (ID = 2569428) Radio Duplex-Junior W ; Radione RADIO (ID = 2569430) Radio
Duplex-Junior W ; Radione RADIO (ID = 2569431) Radio Duplex-Junior W ; Radione RADIO (ID = 2569429) Radio
Duplex-Junior W ; Radione RADIO (ID = 2568901) Radio Duplex-Junior W ; Radione RADIO (ID = 315272) Radio
Duplex-Junior W ; Radione RADIO (ID = 315274) Radio Duplex-Junior W ; Radione RADIO (ID = 523473) Radio
Duplex-Junior W ; Radione RADIO (ID = 315273) Radio Duplex-Junior W ; Radione RADIO (ID = 443140) Radio
Use red slider bar for more.

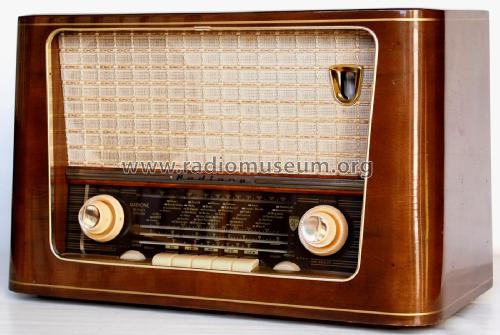

Duplex-Junior W ; Radione RADIO (ID = 2569428) Radio

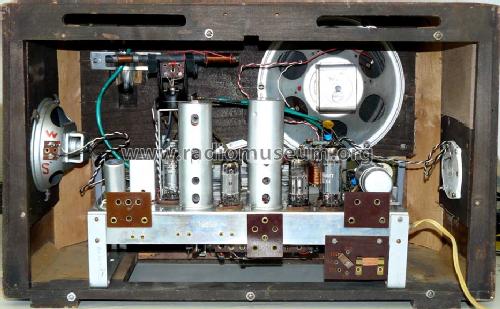

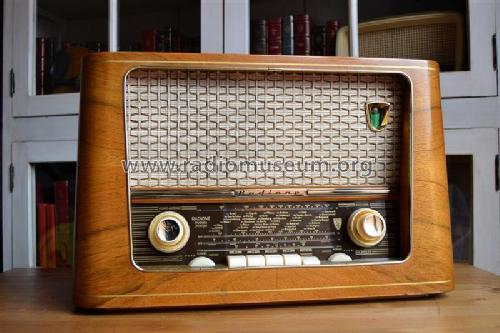

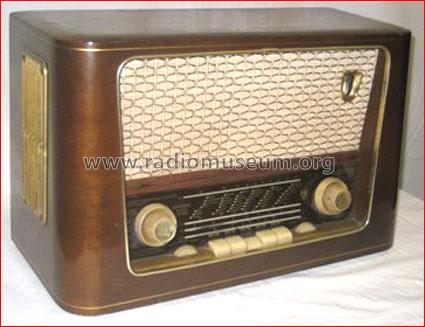

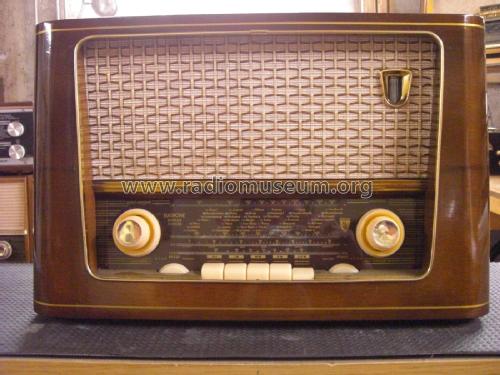

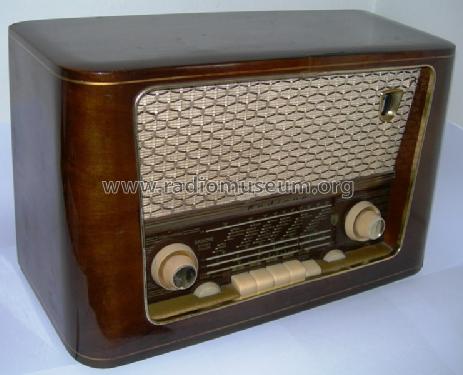

Radione RADIO: Duplex-Junior W [Radio] ID = 2569428 1400x939
Select picture or schematic to display from thumbnails on the right and click for download.
For model Duplex-Junior W EM81, Radione (RADIO Nikolaus Eltz); Wien

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM81 EL84 EZ80
schematic requested
Main principle Superheterodyne (common); ZF/IF 459/10420 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Duplex-Junior W [EM81] - Radione RADIO Nikolaus Eltz;
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 480 x 300 x 210 mm / 18.9 x 11.8 x 8.3 inch
Notes Duplex Junior 58W ist schon angelegt. Dieses Gerät ist mit EM81 bestückt und hat drehbare Ferrit-Antenne.
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 1'880.00 öS
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Schematic
Literature/Schematics (2) - - Manufacturers Literature (Radione, Daten und Geräte-Beschreibung)

Model page created by Jürgen Küting. See "Data change" for further contributors.
