Jupiter W

Jupiter W; Radione RADIO (ID = 57968) Radio

Jupiter W; Radione RADIO (ID = 57970) Radio

Jupiter W; Radione RADIO (ID = 57972) Radio
Jupiter W; Radione RADIO (ID = 246878) Radio Jupiter W; Radione RADIO (ID = 246879) Radio
Jupiter W; Radione RADIO (ID = 246880) Radio Jupiter W; Radione RADIO (ID = 2268333) Radio
Jupiter W; Radione RADIO (ID = 297898) Radio Jupiter W; Radione RADIO (ID = 297899) Radio
Jupiter W; Radione RADIO (ID = 297900) Radio Jupiter W; Radione RADIO (ID = 297901) Radio
Jupiter W; Radione RADIO (ID = 297902) Radio Jupiter W; Radione RADIO (ID = 532177) Radio
Use red slider bar for more.
Jupiter W; Radione RADIO (ID = 246878) Radio

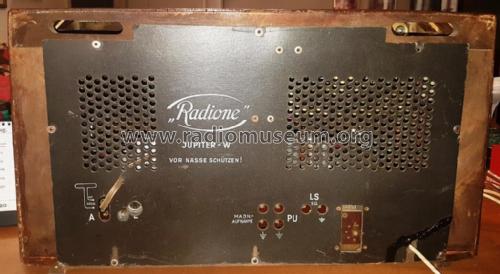

Radione RADIO: Jupiter W [Radio] ID = 246878 933x630
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jupiter W, Radione (RADIO Nikolaus Eltz); Wien

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 461/10420 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Jupiter W - Radione RADIO Nikolaus Eltz;
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 620 x 335 x 250 mm / 24.4 x 13.2 x 9.8 inch
Net weight (2.2 lb = 1 kg) 9.7 kg / 21 lb 5.9 oz (21.366 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb
Literature/Schematics (1) -- Original-techn. papers.
