• Country
• Austria

• Manufacturer / Brand
• Radione (RADIO Nikolaus Eltz); Wien

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10333

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH11 EBF11 EL11 AZ11 EFM11

• Main principle
• Superheterodyne (common); ZF/IF 469,5 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 105; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Luxus-Gross-Super 539-A [Type 1939] - Radione RADIO Nikolaus Eltz;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 375 x 300 mm / 20.5 x 14.8 x 11.8 inch

• Notes
• Variable Bandbreite.

• Net weight (2.2 lb = 1 kg)
• 13.2 kg / 29 lb 1.2 oz (29.075 lb)

• Price in first year of sale
• 298.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Handbuch WDRG 1938 / Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Historische Radios Band IV (224B")

• Literature/Schematics (1)
• -- Schematic (OTO-Schaltungen)

• Picture reference

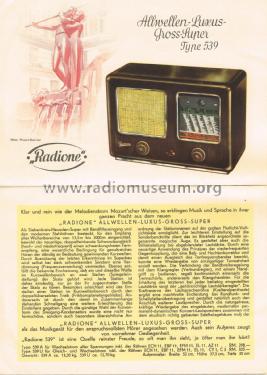

• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 520 models, 362 with images and 321 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
