R33T

• Country
• Austria

• Manufacturer / Brand
• Radione (RADIO Nikolaus Eltz); Wien

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10489

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• OC171 OC171 OC169 OC169 OC169 OC71 OC71 OC74 OC74

• Main principle
• Superheterodyne (common); ZF/IF 452/10420 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 2×4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

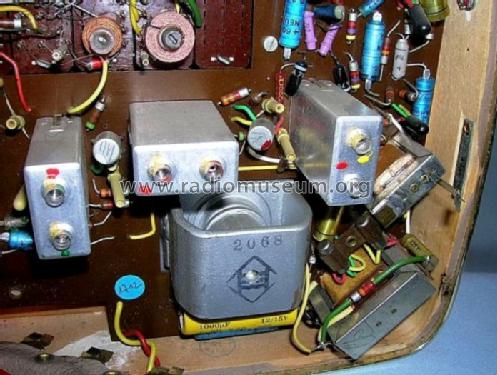

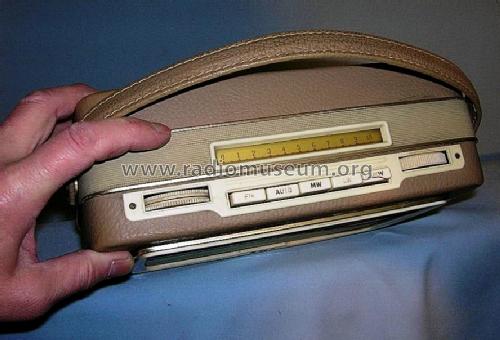

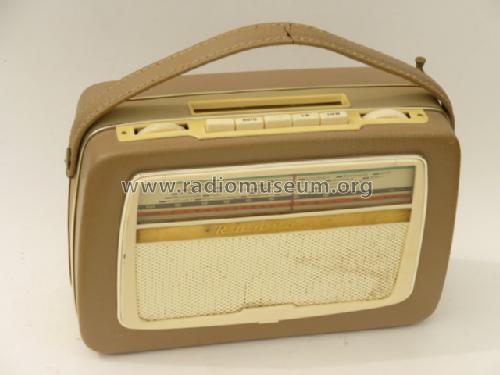

• Model: R33T - Radione RADIO Nikolaus Eltz;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 190 x 90 mm / 11 x 7.5 x 3.5 inch

• Notes
• Bis Gerätenummer 2025 Tastenaggregat mit 4 Tasten
  ab Gerätenummer 2026 geändertes Tastenaggregat mit 5 Tasten.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Price in first year of sale
• 2,290.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Unterlagen E.Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
