Auditorium Luksusradio

Auditorium Luksusradio ; Radionette; Oslo (ID = 724468) Radio

Auditorium Luksusradio ; Radionette; Oslo (ID = 724661) Radio
Auditorium Luksusradio ; Radionette; Oslo (ID = 55408) Radio Auditorium Luksusradio ; Radionette; Oslo (ID = 1103093) Radio
Use red slider bar for more.
Auditorium Luksusradio ; Radionette; Oslo (ID = 55408) Radio

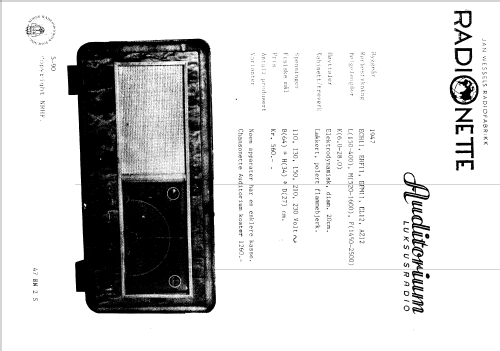

Radionette; Oslo: Auditorium Luksusradio [Radio] ID = 55408 676x395
Select picture or schematic to display from thumbnails on the right and click for download.
For model Auditorium Luksusradio, Radionette; Oslo

Country:  Norway
Manufacturer / Brand:  Radionette; Oslo
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 EL12 AZ12 EFM11
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 210; 230 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Auditorium Luksusradio - Radionette; Oslo
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 640 x 340 x 270 mm / 25.2 x 13.4 x 10.6 inch
Price in first year of sale 560.00 NKr

Model page created by Ernst Rykkje. See "Data change" for further contributors.



All listed radios etc. from Radionette; Oslo
Here you find 134 models, 124 with images and 45 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
