Etherscope 16750

Radolek Co., Chicago

  • Year
  • 1937 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 362074

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 50/60 Hz: 110 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
  • Power out
  • 10 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Etherscope 16750 - Radolek Co., Chicago
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 24 x 41 x 13 inch / 610 x 1041 x 330 mm
  • Notes
  • These Super Features Are Incorporated In Both 10 and 17 Tube Models:

    • Four Continuous Tuning Bands 16.5 to 2,000 meters.
    • Complete Coverage of All Bands:
      16.4 to 55 Meters. foreign and domestic short wave broadcasts;
      55 to 180 meters, police, amateur and aviation;
      180 to 550 meters; standard American and Canadian broadcasts;
      800 to 2000 meters, commercial code, weather reports, European long wave broadcasts.
    • "Gets everything on the air."
    • Sales price was as listed, dealer price was $57.65 USD.
  • Price in first year of sale
  • 125.00 USD
  • Mentioned in

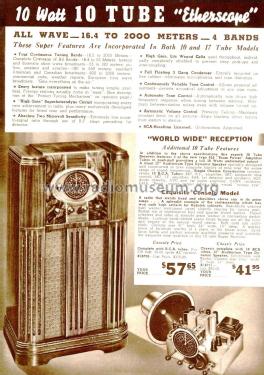

  • -- Original prospect or advert (Radolek Everything in Radio 1937, page 106)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
