Lady FE 867.1501

Lady FE 867.1501; Rafena Werke (ID = 2027656) Television Lady FE 867.1501; Rafena Werke (ID = 2027661) Television

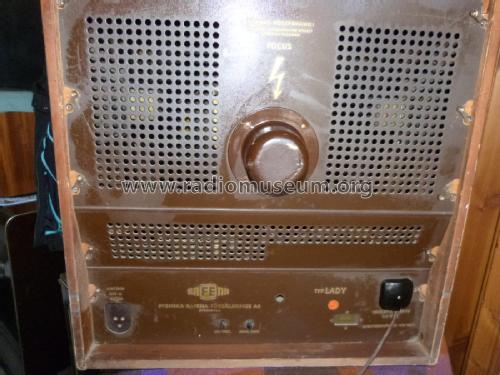

Lady FE 867.1501; Rafena Werke (ID = 2027663) Television Lady FE 867.1501; Rafena Werke (ID = 2027667) Television
Lady FE 867.1501; Rafena Werke (ID = 2027660) Television Lady FE 867.1501; Rafena Werke (ID = 2027670) Television
Lady FE 867.1501; Rafena Werke (ID = 2027671) Television Lady FE 867.1501; Rafena Werke (ID = 2027672) Television
Use red slider bar for more.
Lady FE 867.1501; Rafena Werke (ID = 2027656) Television
Rafena Werke: Lady FE 867.1501 [Television] ID = 2027656 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lady FE 867.1501, Rafena Werke Radeberg, VEB; Radeberg (Ostd.)

Country:  Germany
Manufacturer / Brand:  Rafena Werke Radeberg, VEB; Radeberg (Ostd.)
Brand

VEB Rafena; Radeberg (Ostd.)
Year: 1958 Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: ECC84 ECF82 EF80 EF80 EF80 EF80 ECC82 EABC80 ECL82 EH90 EL81 EL83 EY81 DY86 AW53-80Z
Main principle Superhet with RF-stage; Export model
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Lady FE 867.1501 - Rafena Werke Radeberg, VEB;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 590 x 590 x 550 mm / 23.2 x 23.2 x 21.7 inch
Notes

Wahrscheinlich das erste DDR-Modell eines Tischfernsehers mit 53er Bildröhre, Export-Gerät für Schweden.

Chassis FE867.1501 (ähnlich Cranach ohne UKW), VHF-Bereich, mit Bildröhre AW53-80Z von Valvo!

Model page created by Roelof de Jong Posthumus. See "Data change" for further contributors.
