T-100-1 Ch= 4RT1
- United States of America (USA)
- Manufacturer / Brand
- Raytheon Mfg. Co.; Cambridge, MA
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID

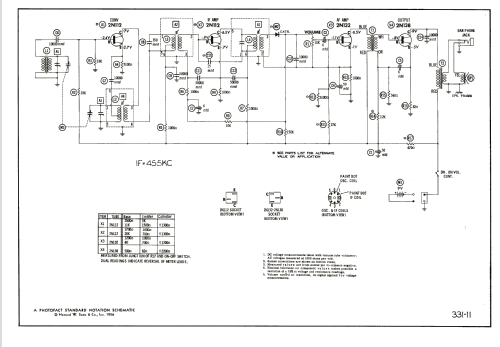

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 2N252 or. 2N112 or. CK760 2N308 or. 2N112 or. CK760 2N238 or. 2N132 2N185 or. 2N138 CK706A
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 9 Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: T-100-1 Ch= 4RT1 - Raytheon Mfg. Co.; Cambridge,
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 6.375 x 3.375 x 2 inch / 162 x 86 x 51 mm
- This first pocket transistor radio from Raytheon Mfg. Co., the radio model T-100, came in 5 different colors: T-100-1 = black/yellow, T-100-2 in ivory/yellow, T-100-3 in black/red, T-100-4 in ivory/red and T-100-5 in ivory/gray. Raytheon made it under the license of RCA and customized it also for Hallicrafters as model 4RT3, Airline as model BR-1102A and for Truetone as model D3715A in Turquoise. There are different schematic sources depending on the brand. Some have different values. Please check here for more information about this model family and about the differences.

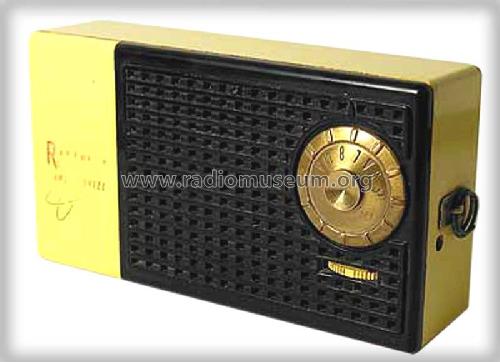

Right front round brass dial with below a thumb wheel on/off/volume knob or wheel in front. In the middle a checkered grill area. The right is a free area for brand, name etc. 1 Germanium diode. No reflex circuit used. Earphone receptacle. For the semiconductors see the equivalent list by clicking the one you need on the list of the four transistors.
Interesting: For Hallicrafters the case was reversed and the thumb wheel on the front was turned into a thumb wheel on the top. Clever idea to hide its origin. See about schematics and differences between them in this explaining text.
- Source of data
- The Collector's Guide To Antique Radios 2. Edition
- Mentioned in
- Beitman Radio Diagrams, Vol. 16, 1956 (page 132.)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 9-56, set 331, folder 11. You can also see Date 7-58, set 405, folder 15.)
- Model page created by Ernst Erb. See "Data change" for further contributors.
