Radiola 28 AR-969 AC
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1925
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 54646
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Print Ad from 1927

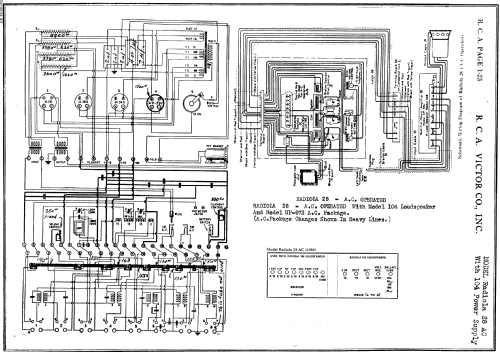

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Valves / Tubes
- UX199 UX199 UX199 UX199 UX199 UX199 UX199 UX210 UX216B or 81 UX216B or 81 unknown_Tube UV876
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radiola 28 AR-969 [AC] - RCA RCA Victor Co. Inc.; New
- Shape
- Console, Highboy (legs > 50 %).
- Notes
-
With model 104 speaker and power supply UP-972.
Voltage regulator "UP591" and ballast tube "UV876".The Battery version Radiola 28 chassis was adapted for use in the RCA Radiola 28 AR-920 [Battery] and the RCA Radiola 28 AR-998 [Battery].
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
- Mentioned in
- Radio Manufacturers of the 1920's, Vol. 3
- Other Models
-
Here you find 5118 models, 3224 with images and 4148 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
