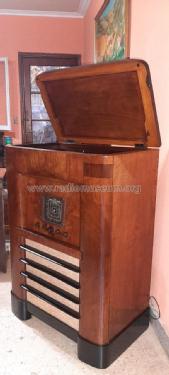

Combinado Radio-Fonógrafo 812-D
RCA Victor; Buenos Aires
- Country
- Argentina
- Manufacturer / Brand
- RCA Victor; Buenos Aires
- Year
- 1937 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 330286
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage; ZF/IF 460 kH kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 210-230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 30.5 cm = 12 inch
- Power out
- 10 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Combinado Radio-Fonógrafo 812-D - RCA Victor; Buenos Aires
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 28.75 x 43 x 15.375 inch / 730 x 1092 x 391 mm
- Notes
-
RCA Victor Argentina, 812-D
- Net weight (2.2 lb = 1 kg)
- 90.5 kg / 199 lb 5.4 oz (199.339 lb)
- Author
- Model page created by Julio Alberto Sanz-Litardi. See "Data change" for further contributors.
