Primus ECH11

Primus ; REL, Electrum; Brno (ID = 47087) Radio
Primus ; REL, Electrum; Brno (ID = 286031) Radio Primus ; REL, Electrum; Brno (ID = 571161) Radio
Primus ; REL, Electrum; Brno (ID = 286032) Radio Primus ; REL, Electrum; Brno (ID = 571158) Radio

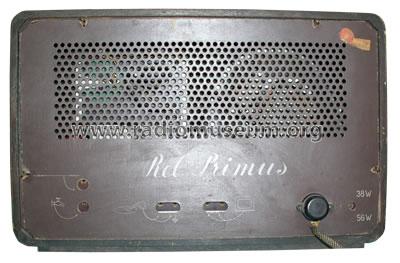

Primus ; REL, Electrum; Brno (ID = 571162) Radio
Use red slider bar for more.
Primus ; REL, Electrum; Brno (ID = 286031) Radio
REL, Electrum; Brno: Primus [Radio] ID = 286031 778x534
Select picture or schematic to display from thumbnails on the right and click for download.
For model Primus ECH11, REL, Electrum; Brno

Country:  Czechoslovakia
Manufacturer / Brand:  REL, Electrum; Brno
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH11 EBF11 EF11 EL11 EM11 AZ1
Main principle Superheterodyne (common); ZF/IF 480 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21.5 cm = 8.5 inch
Power out
from Radiomuseum.org Model: Primus [ECH11] - REL, Electrum; Brno
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 495 x 315 x 230 mm / 19.5 x 12.4 x 9.1 inch
Net weight (2.2 lb = 1 kg) 10.6 kg / 23 lb 5.6 oz (23.348 lb)
External source of data Erb
Source of data Ceskoslovenske prijimace 1933-1945, Baudys 1947
