512

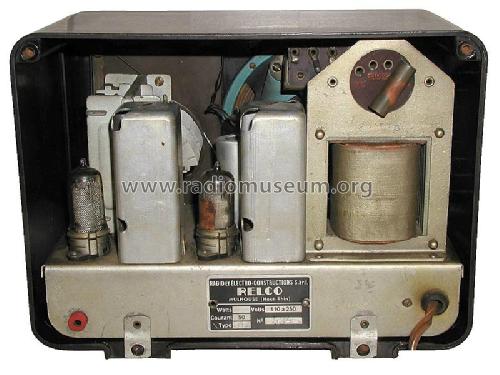

512; Relco; Mulhouse (ID = 277484) Radio 512; Relco; Mulhouse (ID = 277485) Radio
Use red slider bar for more.

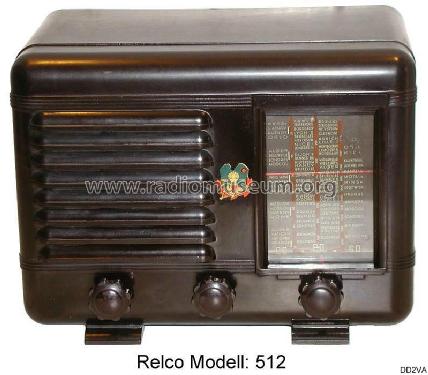

512; Relco; Mulhouse (ID = 277484) Radio
Relco; Mulhouse: 512 [Radio] ID = 277484 800x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 512, Relco; Mulhouse

Country:  France
Manufacturer / Brand:  Relco; Mulhouse
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EF41 EBC41 EL41 AZ41
schematic requested
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: 512 - Relco; Mulhouse
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 250 x 185 x 160 mm / 9.8 x 7.3 x 6.3 inch
Collectors' prices

Model page created by Ralf Kläs. See "Data change" for further contributors.



All listed radios etc. from Relco; Mulhouse
Here you find 5 models, 5 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
