• Country
• Great Britain (UK)

• Manufacturer / Brand
• RGD (Brand), Radio Gramophone Development Co. Ltd.; Birmingham

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 122691

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

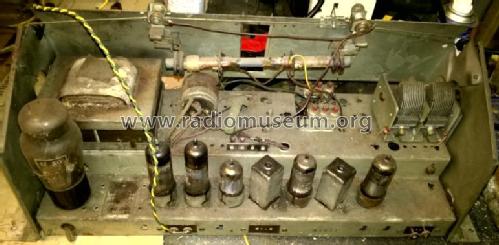

• ECH81 EBF80 ECC83 EL84 EL84 GZ30

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 200 - 250 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 6.5 inch = 16.5 cm

• Power out
• 6 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Two Ten 210 - RGD Brand, Radio Gramophone

• Shape

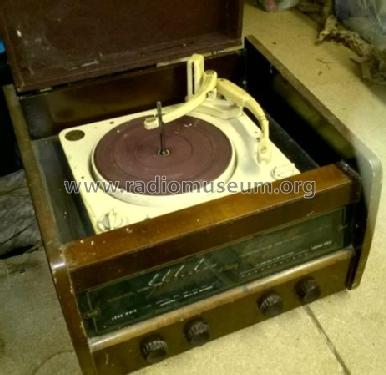

• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 19 x 13 x 17 inch / 483 x 330 x 432 mm

• Notes

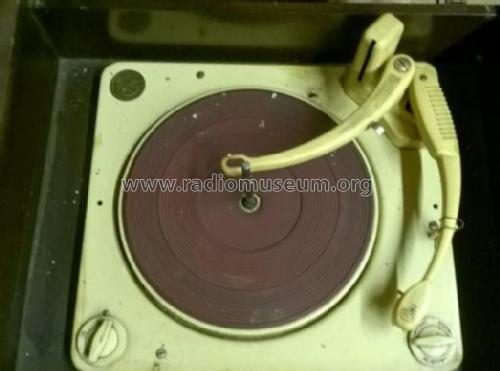

• 3-speed Collaro RC54 automatic 10 record mixer-changer unit, crystal pick-up, walnut cabinet.

• Source of data
• -- Original prospect or advert

• Circuit diagram reference
• Radio and TV Servicing books (R&TVS) book

• Author
• Model page created by a member from A. See "Data change" for further contributors.
