Apollo S

Apollo S; RIM bzw. Radio-RIM; (ID = 375868) Kit
Apollo S; RIM bzw. Radio-RIM; (ID = 363958) Kit Apollo S; RIM bzw. Radio-RIM; (ID = 363959) Kit
Apollo S; RIM bzw. Radio-RIM; (ID = 363960) Kit Apollo S; RIM bzw. Radio-RIM; (ID = 363961) Kit
Apollo S; RIM bzw. Radio-RIM; (ID = 363962) Kit Apollo S; RIM bzw. Radio-RIM; (ID = 363963) Kit
Apollo S; RIM bzw. Radio-RIM; (ID = 2431482) Kit Apollo S; RIM bzw. Radio-RIM; (ID = 2431483) Kit
Apollo S; RIM bzw. Radio-RIM; (ID = 2431485) Kit
Use red slider bar for more.
Apollo S; RIM bzw. Radio-RIM; (ID = 363958) Kit
RIM bzw. Radio-RIM;: Apollo S [Kit] ID = 363958 780x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Apollo S, RIM bzw. Radio-RIM; München

Country:  Germany
Manufacturer / Brand:  RIM bzw. Radio-RIM; München
Brand

Radiola-Industrie GmbH
Year: 1987 Category: Kit (Parts plus instruction) or building instructions only
Semiconductors (the count is only for transistors) Semiconductors present. TDA7021T TDA7040T TDA7050T LM385
Main principle FLL, Frequency-locked loop (not PLL); ZF/IF 76 kHz
Wave bands FM Broadcast Band Only
Details
Power type and voltage Dry Batteries / 3 × 1,5 Volt
Loudspeaker - only for Earphone!
Power out
from Radiomuseum.org Model: Apollo S - RIM bzw. Radio-RIM; München
Material Plastics (no bakelite or catalin)

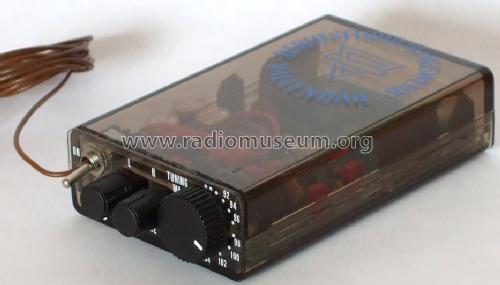

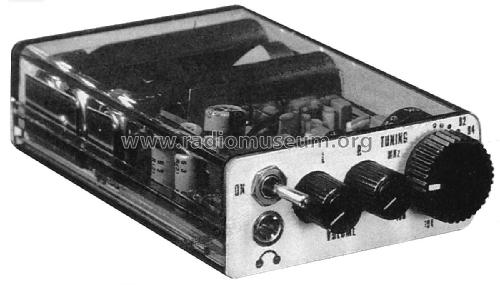

Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 57 x 104 x 23 mm / 2.2 x 4.1 x 0.9 inch

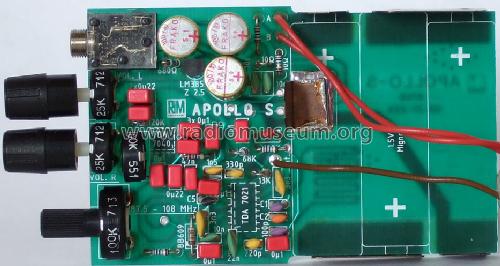

Notes FM-Stereo-Empfänger für Kopfhörerbetrieb. 3-IC-Schaltungskonzept (Philips) mit TDA7021T (FM-Radio), TDA7040T (PLL-Stereo-Decoder), TDA7050T (Stereo-Endstufe 2× 75 mW).
Net weight (2.2 lb = 1 kg) 0.1 kg / 0 lb 3.5 oz (0.22 lb)
Source of data -- Schematic

Model page created by Bernhard Nagel. See "Data change" for further contributors.
