Mischpultverstärker MPV 57

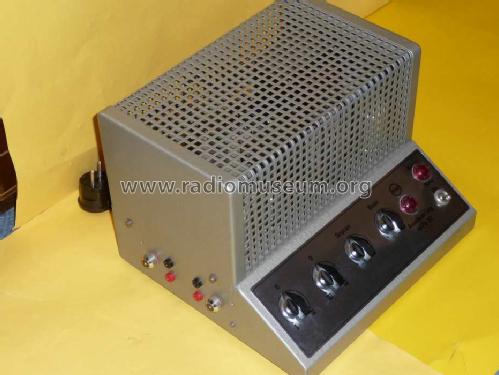

RIM bzw. Radio-RIM;: Mischpultverstärker MPV 57 [Ampl/Mixer] ID = 1704134 933x700

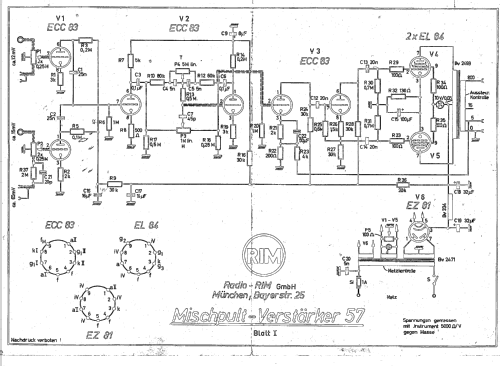

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Radiola-Industrie GmbH | ||||
|---|---|---|---|---|---|
| Year: 1957–1960 | Category: Audio Amplifier or -mixer | ||||
| Valves / Tubes | 6: ECC83 ECC83 ECC83 EL84 EL84 EZ81 |
| Main principle | Audio-Amplification; 6 AF stage(s) |
|---|---|
| Wave bands | - without |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 220 Volt |
| Loudspeaker | - This model requires external speaker(s). |
| Power out | 14 W (unknown quality) |
| from Radiomuseum.org | Model: Mischpultverstärker MPV 57 - RIM bzw. Radio-RIM; München |
| Material | Metal case |
| Shape | Tablemodel, slant panel. |
| Dimensions (WHD) | 280 x 230 x 265 mm / 11 x 9.1 x 10.4 inch |
| Notes | 4 Eingänge, davon je 2 miteinander mischbar. 30-16000 Hz. Nur als Bausatz. 3 Ausgänge : 5-15-800 Ohm (100 V-Ausgang). |
| Price in first year of sale | 179.00 DM |
| Source of data | -- Original prospect or advert |
Model page created by Otto Frosinn. See "Data change" for further contributors.
