Lausitz 2011

• Country
• Germany

• Manufacturer / Brand
• Robotron-Elektronik Hoyerswerda, VEB; Hoyerswerda (Ostd.)

• Year
• 1977–1984

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73641

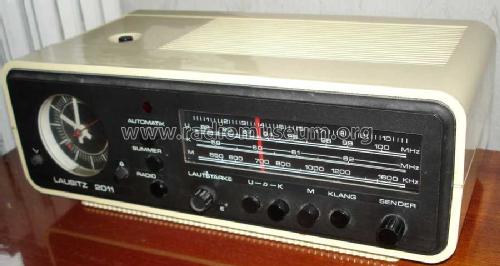

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 4 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Lausitz 2011 - Robotron-Elektronik

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 335 x 110 x 175 mm / 13.2 x 4.3 x 6.9 inch

• Notes
• Kleines Tischradio mit batteriebetriebener Analoguhr mit Schaltfunktion, Weckton wahlweise Summer oder Radioton. Nachfolger des Lausitz 2001 im gleichen Gehäuse ; Radiochassis baugleich dem Vorgänger; Mischbestückung von Transistoren und IC; Klangtaste; Anschlüsse für TA/TB; Aussenantenne und Zweitlautsprecher.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 490.00 DM

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Michael Seiffert. See "Data change" for further contributors.
