Labornetzgerät NGU (BN95140)

• Country
• Germany

• Manufacturer / Brand
• Rohde & Schwarz, PTE; München

• Year
• 1960 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 75071

• • alternative name: Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz

• Picture

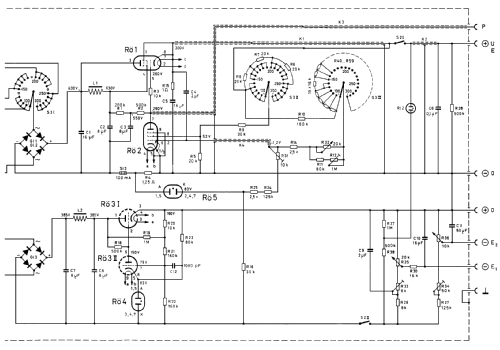

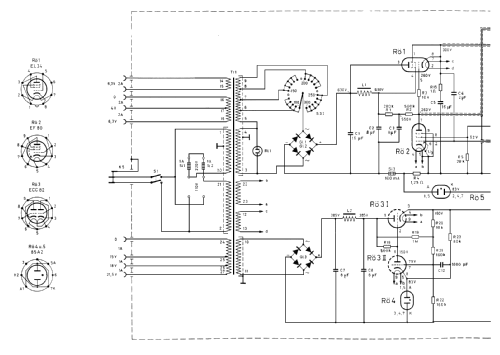

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• EL34 EF80 ECC82 85A2 85A2

• Wave bands
• - without

• Details
• Power Supply (not only Batt.El.)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Labornetzgerät NGU - Rohde & Schwarz, PTE; München

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 286 x 227 x 226 mm / 11.3 x 8.9 x 8.9 inch

• Notes
• Ua: Gleichspannung U: 100-300 V, Gleichspannung E1: 0-100 V, Gleichspannung E2: 0-10 V, Wechselspannung 1: 6,3 V, Wechselspannung 2: 0 / 4 / 6,3 V, Wechselspannung 3: 0 / 15 / 18 / 21,5 V.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)
