Wunderland II (2)

Wunderland II ; Rondo GmbH, Willy (ID = 1953327) Radio
Wunderland II ; Rondo GmbH, Willy (ID = 2388) Radio Wunderland II ; Rondo GmbH, Willy (ID = 777029) Radio
Wunderland II ; Rondo GmbH, Willy (ID = 777059) Radio Wunderland II ; Rondo GmbH, Willy (ID = 777063) Radio
Wunderland II ; Rondo GmbH, Willy (ID = 777069) Radio Wunderland II ; Rondo GmbH, Willy (ID = 777073) Radio
Wunderland II ; Rondo GmbH, Willy (ID = 777081) Radio Wunderland II ; Rondo GmbH, Willy (ID = 777083) Radio
Wunderland II ; Rondo GmbH, Willy (ID = 777087) Radio
Use red slider bar for more.
Wunderland II ; Rondo GmbH, Willy (ID = 2388) Radio
Rondo GmbH, Willy: Wunderland II [Radio] ID = 2388 355x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wunderland II (2), Rondo GmbH, Willy Bürkle; Stuttgart-N (ab 1950 Ponti)

Country:  Germany
Manufacturer / Brand:  Rondo GmbH, Willy Bürkle; Stuttgart-N (ab 1950 Ponti)
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: UCH41 or UCH42 UAF41 or UAF42 UL41
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 220 Volt

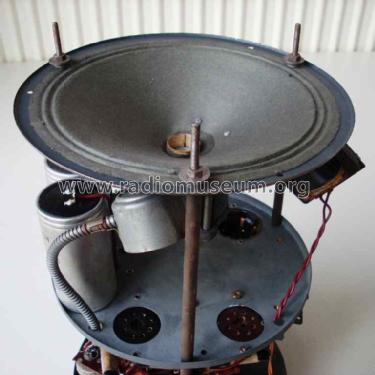

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Wunderland II - Rondo GmbH, Willy Bürkle;
Material Various materials
Dimensions (WHD) 335 x 380 x 335 mm / 13.2 x 15 x 13.2 inch
Notes KW-Band gespreizt. Keramisches Rundgehäuse auch mit Schlickmalerei, Sgraffito (Ritztechnik) und Fayence lieferbar.
External source of data E. Erb 3-907007-36-0
Source of data Das Rundfunk-Jahr 1948/49 / Radiokatalog Band 2, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Rondo GmbH, Willy Bürkle; Stuttgart-N (ab 1950 Ponti)
Here you find 8 models, 6 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
