Baden-Baden W; SABA; Villingen (ID = 54498) Radio

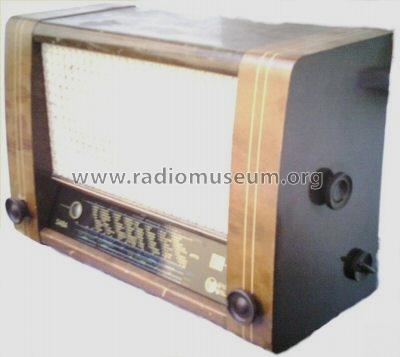

SABA; Villingen: Baden-Baden W [Radio] ID = 54498 789x576
Select picture or schematic to display from thumbnails on the right and click for download.
For model Baden-Baden W, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1951–1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF80 EF80 ECH42 EF41 EM4 EBC41 EL41 Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 472/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Baden-Baden W - SABA; Villingen
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 545 x 353 x 222 mm / 21.5 x 13.9 x 8.7 inch
Notes In den Kundendienstanleitungen von 1951/52 beschrieben - mit UKW 87-100 MHz. Zwei Ge-Dioden zur UKW Demodulation. Netzgl. = EC250/75. Kl. Änderungen ab Nr. 409001. MHG-Schaltung. Optische Anzeige der Bandbreite.
Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)
Price in first year of sale 349.00 DM
Collectors' prices
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1952/53
Mentioned in Funk-Technik (FT) (5212)
