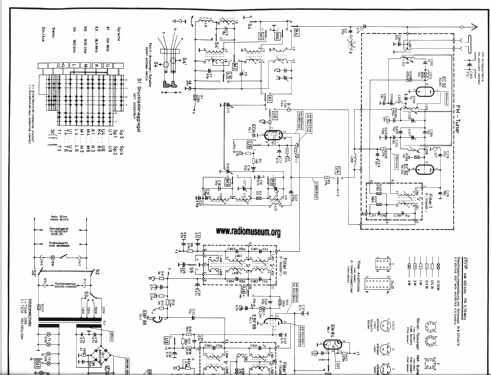

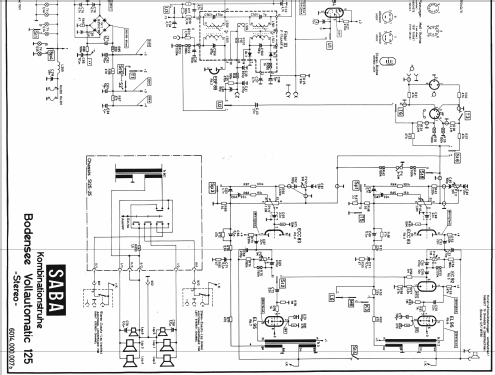

Select picture or schematic to display from thumbnails on the right and click for download.
For model Bodensee Vollautomatic 126 Stereo, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1961/1962 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes EC92 EC92 ECH81 EBF89 EM84 ECC83 EC92 EL95 EL95
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details Changer + Tape Recorder; Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 6 Loudspeakers
Power out
from Radiomuseum.org Model: Bodensee Vollautomatic 126 Stereo - SABA; Villingen
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1700 x 885 x 495 mm / 66.9 x 34.8 x 19.5 inch
Notes Fernseh-Chassis = Schauinsland T126-26 Vollautomatic;
Rundfunk-Chassis = Freudenstadt 125-Stereo;
Phono-Chassis = Dual 1007
Tonbandchassis (gegen Mehrpreis) = TK125S (+ 649,- DM) oder TC86 (+ 789,- DM)..

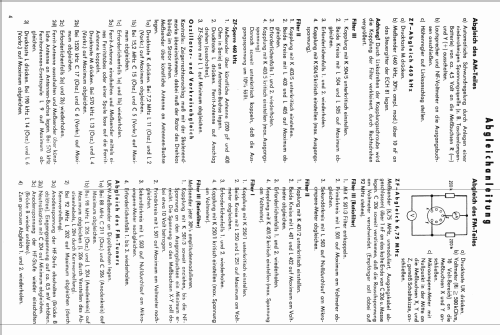

Abgleich (auch Steuerfilter)
Alignment (also automatic filter)
Net weight (2.2 lb = 1 kg) 115.3 kg / 253 lb 15.4 oz (253.965 lb)
Price in first year of sale 2'699.00 DM
Collectors' prices
Source of data HdB d.Rdf-& Ferns-GrH 1961/62
