• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1961/1962

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 105580

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• PCC88 PCF82 PC88 PC86 EF183 EF184 EF80 EF80 EF80 PCL84 EBF89 ECH84 ECH84 PCL85 PL500 PY88 DY86 PCL86 AW59-90

• Number of Transistors

• Semiconductors
• BA101 OA81 OA81 OA160 OA160 RL232 RL232 OA161 OA161 OY241

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

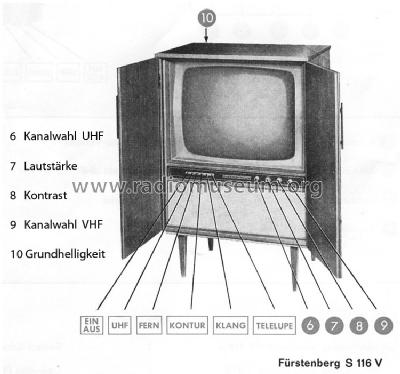

• Model: Fürstenberg S116V Vollautomatic - SABA; Villingen

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 630 x 940 x 425 mm / 24.8 x 37 x 16.7 inch

• Notes

• Technische Daten wie Schauinsland T116V Vollautomatic, jedoch Standgerät.

  Anschluss für Saba Fernsteuerung FS 125 (+ DM 30,-).

• Net weight (2.2 lb = 1 kg)
• 52 kg / 114 lb 8.6 oz (114.537 lb)

• Price in first year of sale
• 1,399.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62

• Literature/Schematics (1)
• - - Manufacturers Literature (Saba Katalog, Neuheiten-Programm 1961/62, Ausgabe 1332)

• Literature/Schematics (2)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
