• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1962/1963

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 107598

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• PC88 PC86 PCC88 PCF82 EF183 EF80 EF80 EF80 PCL84 ECH84 ECH84 PCL85 EBF89 PCL86 PL500 PY88 DY86 AW59-90

• Number of Transistors

• Semiconductors
• BY242 OA160 OA161 RL232

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Konstanz T127V Automatic - SABA; Villingen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 605 x 530 x 350 mm / 23.8 x 20.9 x 13.8 inch

• Notes

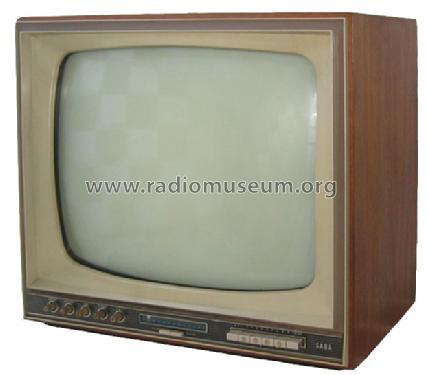

• Saba Konstanz T127V Automatic

  • 59 cm Fernsehgerät mit Telelupe
  • Empfangsbereiche
    • VHF-Bereich: Kanäle 2 - 11
    • UHF-Bereich: Kanäle 21 - 68
  • Antenneneingang 240 Ω symmetrisch.

  Anschraubbare Beine gegen Mehrpreis (17,- DM).

• Net weight (2.2 lb = 1 kg)
• 33 kg / 72 lb 11 oz (72.687 lb)

• Price in first year of sale
• 1,199.00 DM

• Source of data
• Handbuch VDRG 1962/1963
