Breisgau Automatic 6-3D

Breisgau Automatic 6-3D; SABA; Villingen (ID = 10198) Radio

Breisgau Automatic 6-3D; SABA; Villingen (ID = 680914) Radio

Breisgau Automatic 6-3D; SABA; Villingen (ID = 10199) Radio
Breisgau Automatic 6-3D; SABA; Villingen (ID = 53936) Radio Breisgau Automatic 6-3D; SABA; Villingen (ID = 220724) Radio
Breisgau Automatic 6-3D; SABA; Villingen (ID = 1112363) Radio
Use red slider bar for more.
Breisgau Automatic 6-3D; SABA; Villingen (ID = 53936) Radio

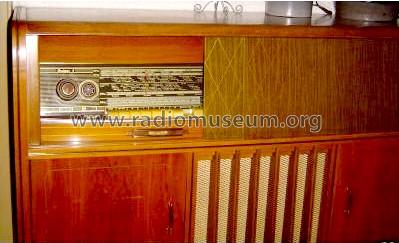

SABA; Villingen: Breisgau Automatic 6-3D [Radio] ID = 53936 399x243
Select picture or schematic to display from thumbnails on the right and click for download.
For model Breisgau Automatic 6-3D, SABA; Villingen:
ebay

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EC92 EC92 ECH81 EF85 EM80 EABC80 ECL80 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 472/6750 kHz
Tuned circuits 9 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 125; 150; 220 Volt
Loudspeaker 3 Loudspeakers
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Breisgau Automatic 6-3D - SABA; Villingen
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1170 x 788 x 400 mm / 46.1 x 31 x 15.7 inch
Notes Phono-Chassis = Dual 1003..
Abgleich (auch Steuerfilter)
Alignment (also automatic filter)
Net weight (2.2 lb = 1 kg) 43 kg / 94 lb 11.4 oz (94.714 lb)
Price in first year of sale 998.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1955/56
