Schauinsland P200 electronic G

SABA; Villingen

  • Year
  • 1971/1972
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 327838
    • Brand: Schwer & Söhne, GmbH

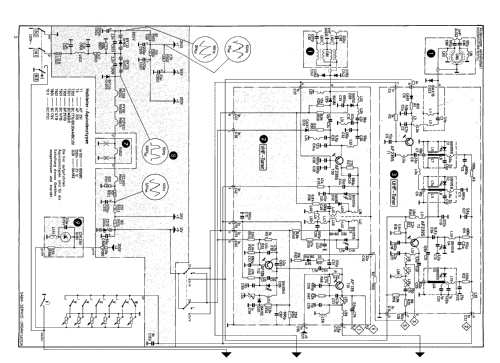

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Number of Transistors
  • 17
  • Main principle
  • Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Schauinsland P200 electronic G - SABA; Villingen
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 605 x 400 x 345 mm / 23.8 x 15.7 x 13.6 inch
  • Notes
  • Saba Schauinsland P200 electronic G

    • 51 cm Fernseh-Tischgerät
    • Empfangsbereiche
      • VHF - Bereich Kanäle: 2 - 12
      • UHF - Bereich Kanäle: 21 - 60
    • Antenneneingang 240 Ohm symmetrisch
    • Lautsprecher: 15 x 17 cm
    • Gehäuse nussbaum naturhell oder mattweiss
    • Weitere Halbleiter: 35 Dioden, 2 ICs
  • Net weight (2.2 lb = 1 kg)
  • 19 kg / 41 lb 13.6 oz (41.85 lb)
  • Price in first year of sale
  • 648.00 DM
  • Literature/Schematics (1)

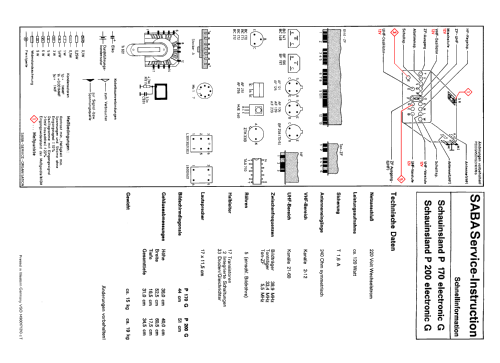

  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
