Schauinsland S126-26 Vollautomatic
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1961/1962
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 105582
-
- Brand: Schwer & Söhne, GmbH
Q: Saba, Produkt-Katalog 1961/62

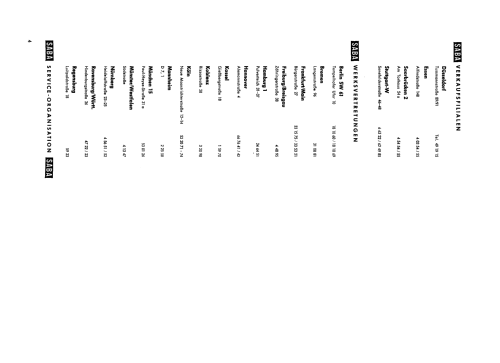

Q: Saba, Service-Unterlagen

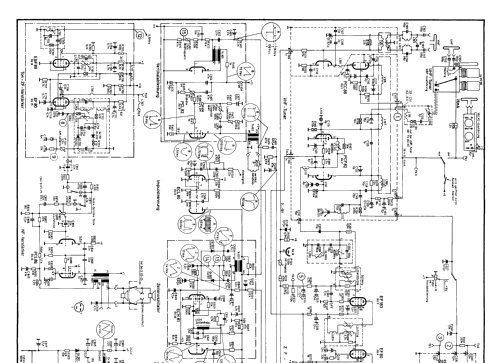

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- PC86 PC86 PCC88 PCF82 EF183 EF80 EF80 EF80 EF80 PCL84 EBF89 EAA91 ECL80 PCL82 ECH81 PL36 PY88 DY86 PCL86 AW59-90
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Schauinsland S126-26 Vollautomatic - SABA; Villingen
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 625 x 935 x 440 mm / 24.6 x 36.8 x 17.3 inch
- Notes
-
Saba, Schauinsland S126-26 Vollautomatic
- 59 cm Fernsehgerät
- Empfangsbereiche
- VHF-Bereich: Kanäle 2 - 11 + Reservekanäle 1 und 12
- UHF-Bereich: Kanäle 14 - 53
- Lautsprecher 2 Stück 18 x 24 cm.
- Einbau-Antenne für die Kanäle 5 - 11
- Antenneneingang 240 Ohm symmetrisch.
Die kabelgebundene Fernbedienung FS125-25 enthält die Bedienelemente zum Einstellen der Lautstärke, Kontrast und Umschalten zwischen VHF-UHF.
Standgerät mit Türen.
- Net weight (2.2 lb = 1 kg)
- 52 kg / 114 lb 8.6 oz (114.537 lb)
- Price in first year of sale
- 1,399.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1961/62
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
