Schauinsland T144 Automatic

Schauinsland T144 Automatic; SABA; Villingen (ID = 1286993) Television

Schauinsland T144 Automatic; SABA; Villingen (ID = 1286994) Television
Schauinsland T144 Automatic; SABA; Villingen (ID = 1228903) Television Schauinsland T144 Automatic; SABA; Villingen (ID = 1228938) Television
Schauinsland T144 Automatic; SABA; Villingen (ID = 1228939) Television Schauinsland T144 Automatic; SABA; Villingen (ID = 1228940) Television
Schauinsland T144 Automatic; SABA; Villingen (ID = 2042977) Television Schauinsland T144 Automatic; SABA; Villingen (ID = 2042981) Television
Schauinsland T144 Automatic; SABA; Villingen (ID = 2042982) Television
Use red slider bar for more.
Schauinsland T144 Automatic; SABA; Villingen (ID = 1228903) Television
SABA; Villingen: Schauinsland T144 Automatic [Television] ID = 1228903 933x862

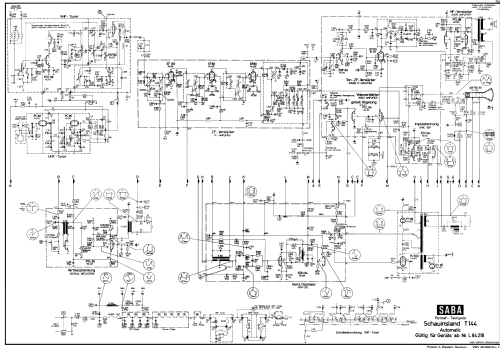

Select picture or schematic to display from thumbnails on the right and click for download.
For model Schauinsland T144 Automatic, SABA; Villingen:
Bild von Günther Schneider.

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1963/1964 Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: PC86 PC88 PCC88 PCF82 EF183 EF80 EF80 PCL84 EBF89 EF80 PCL86 ECH84 ECH84 PCL85 PY88 PL500 DY86 AW59-91
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Schauinsland T144 Automatic - SABA; Villingen
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 590 x 530 x 385 mm / 23.2 x 20.9 x 15.2 inch
Notes VHF/UHF. Standbeine gegen Mehrpreis (15,- DM).
Net weight (2.2 lb = 1 kg) 28.5 kg / 62 lb 12.4 oz (62.775 lb)
Price in first year of sale 948.00 DM
Source of data Handbuch VDRG 1963/1964

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
